Torque Converter: Description: Description: Impeller
WARNING: This page is about a different car, the 2016 Jeep Wrangler and 2015 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.

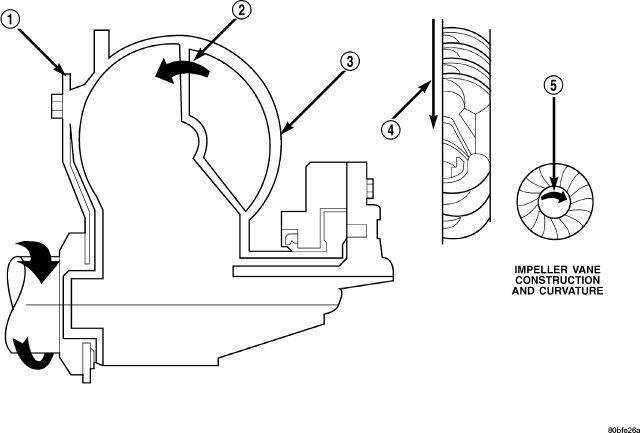

| 1 - ENGINE FLEXPLATE |
| 2 - OIL FLOW FROM IMPELLER SECTION INTO TURBINE SECTION |
| 3 - IMPELLER VANES AND COVER ARE INTEGRAL |
| 4 - ENGINE ROTATION |
| 5 - ENGINE ROTATION |
The impeller (3) (Fig 1) is an integral part of the converter housing. The impeller consists of curved blades placed radially along the inside of the housing on the transmission side of the converter. As the converter housing is rotated by the engine, so is the impeller, because they are one and the same and are the driving members of the system.
