Shifter, Transmission: Description: Description
WARNING: This page is about a different car, the 2016 Jeep Wrangler and 2015 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.

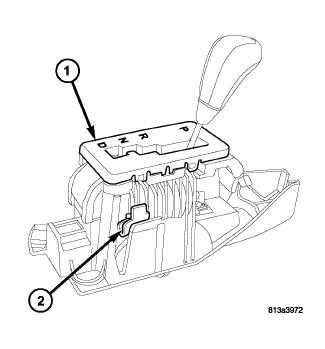

| 1 - SHIFTER ASSEMBLY |
| 2 - BTSI OVERRIDE |
The automatic transmission is operated with the help of a shift lever assembly (SLA) (1) (Fig 1) located in the floor console. There are four positions to which the selection lever can be shifted: P, R, N, D. In addition, the selector lever can be moved sideways (+/-) in position "D" to adjust the shift range.
All selector lever positions, as well as selected shift ranges in position "D", are identified by the SLA. The information is then sent to the transmission control module (TCM) via a hardwire connection. At the same time, the selector lever positions "P", "R", "N" and "D" are transmitted by a shift cable to the selector shaft in the transmission.
The SLA is comprised of the following functions:
- Key lock: Depending on the selector lever position, the ignition cylinder is locked/unlocked, i.e., the ignition key can be removed only if the selector lever is in position "P". A park lock cable is used to perform this function.
- Park lock: The selector lever is not released from position "P" until the brake pedal has been applied and the ignition key is in "ACC" or ON" positions. Shift lock is controlled by the brake light switch in conjunction with a locking solenoid in the SLA. As soon as the brake pedal is applied firmly, the locking solenoid is energized and retracted to unlock the selector lever. If the selector lever cannot be moved out of position "P" due to a malfunction, the shift lock function can be overridden (2). Refer to MECHANISM, BRAKE TRANSMISSION SHIFT INTERLOCK, OPERATION .
- Reverse inhibitor: As soon as the vehicle speed exceeds approximately 4-7 mph, it is no longer possible to move the selector lever from position "N" to position "R". The reverse inhibit functionality is controlled by the same solenoid as the park lock. As the vehicle accelerates past the calibrated speed threshold, the solenoid is energized to block the sideways motion of the shift lever necessary to move from NEUTRAL to REVERSE. The reverse inhibit is not released until the vehicle speed falls below approximately 4-7 mph and the shifter is moved out of the "D" shifter position.
