Sensor, Dynamics: Removal: Removal

WARNING: This page is about a different car, the 2014 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the battery negative cable from the battery post.

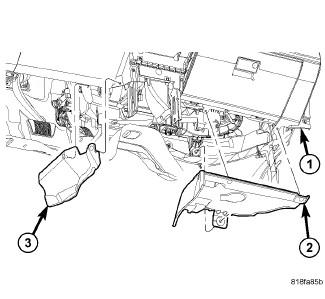

    Fig 1: Left And Right Lower Instrument Panel Trim
    GC0122985Courtesy of CHRYSLER GROUP, LLC
  2. Remove the lower instrument panel trim on each side of console below instrument panel.

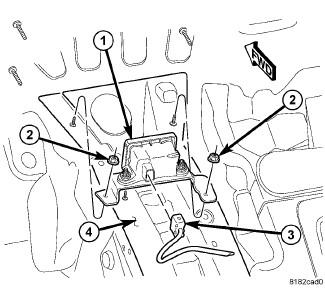

    Fig 2: Identifying Dynamics Sensor
    GC0120843Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect the wiring harness connector (3) at the dynamics sensor (1).
  4. Working on each side of the floor tunnel, remove the nuts (2) mounting the dynamics sensor to the floor pan tunnel (4).
  5. Remove the dynamics sensor (1).
