No Response From The Steering Angle Sensor (SAS): Notes

WARNING: This page is about a different car, the 2016 Jeep Wrangler and 2015 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.

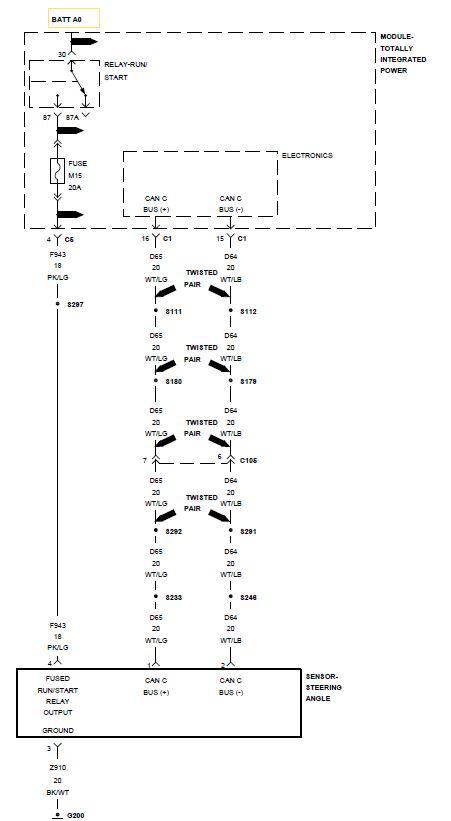

Fig 1: Steering Angle Sensor (SAS) Circuit Schematic

Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram, refer to SYSTEM WIRING DIAGRAMS article .
