B1751-11-Courtesy Lamp Control - Circuit Short To Ground: Notes

WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .

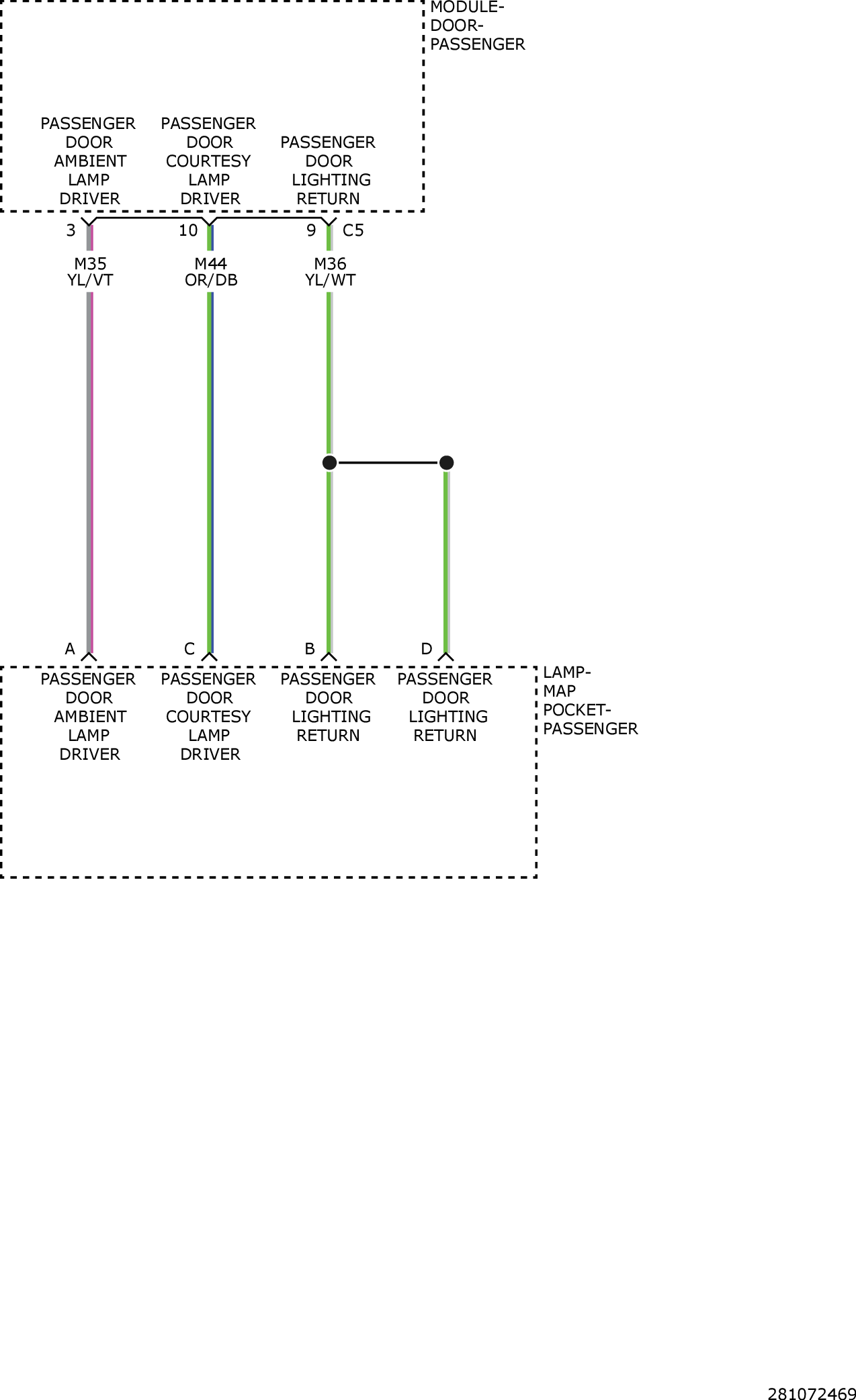

Fig 1: Courtesy Lamp Control Circuit Diagram
GC0157376Courtesy of CHRYSLER GROUP, LLC
