Lamp, Vanity: Removal: Removal
WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Vehicles equipped with optional vanity lamps have a lamp on each side of a covered mirror that is integral to each sun visor. Both lamps are controlled by an integral switch that is automatically actuated by the mirror cover. The bulb types and service procedures are identical for both of these lamps.
- Disconnect and isolate the battery negative cable.
- Open the lighted vanity mirror cover.

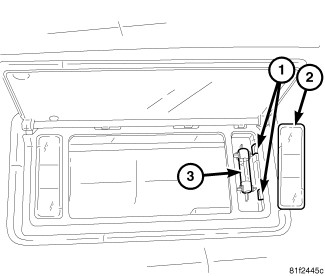

- Using a small flat-bladed screwdriver, gently pry between the lamp lens (2) and housing (1) far enough to disengage the two tabs (1) at the outboard side of the lens from the lamp housing.
- Carefully unsnap the bulb (3) from the two bulb holders within the lamp housing.
- Remove the bulb from the lamp.
