Lamp - Dual
WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

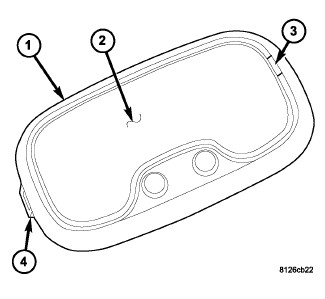

- Position the dome/reading lamp unit (1) to the mounting hole in the headliner.
- Reconnect the wire harness connector to the connector receptacle on the back of the lamp.
- Insert the fixed retainer on the notched (3) end of the lamp housing up into one side of the mounting hole in the headliner.
- Slide the notched end of the housing into the mounting hole far enough to engage the lens hinge/retainer (4) into the opposite side of the hole in the headliner.
- Gently and evenly press the lens hinge/retainer end of the lamp upward into the mounting hole until the bezel of the lamp housing is flush with the headliner.
- Swing the notched end of the lamp lens (2) up into position against the lamp housing, then press upward on the lens firmly and evenly until it snaps into the housing.
- Reconnect the battery negative cable.
