Bulb - Single Lamp
WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Always use the correct bulb size and type for replacement. An incorrect bulb size or type may overheat and cause damage to the lamp, the socket or the lamp wiring.

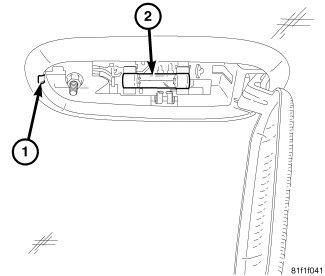

- Align the ends of the bulb (2) with the two bulb holders within the dome lamp housing.
- Carefully press the bulb firmly and evenly into the bulb holders until it snaps into place.
- Swing the notched end of the lens up into position against the housing, then press upward on the lens firmly and evenly until it snaps into the housing.
- Reconnect the battery negative cable.
