WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.
For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article

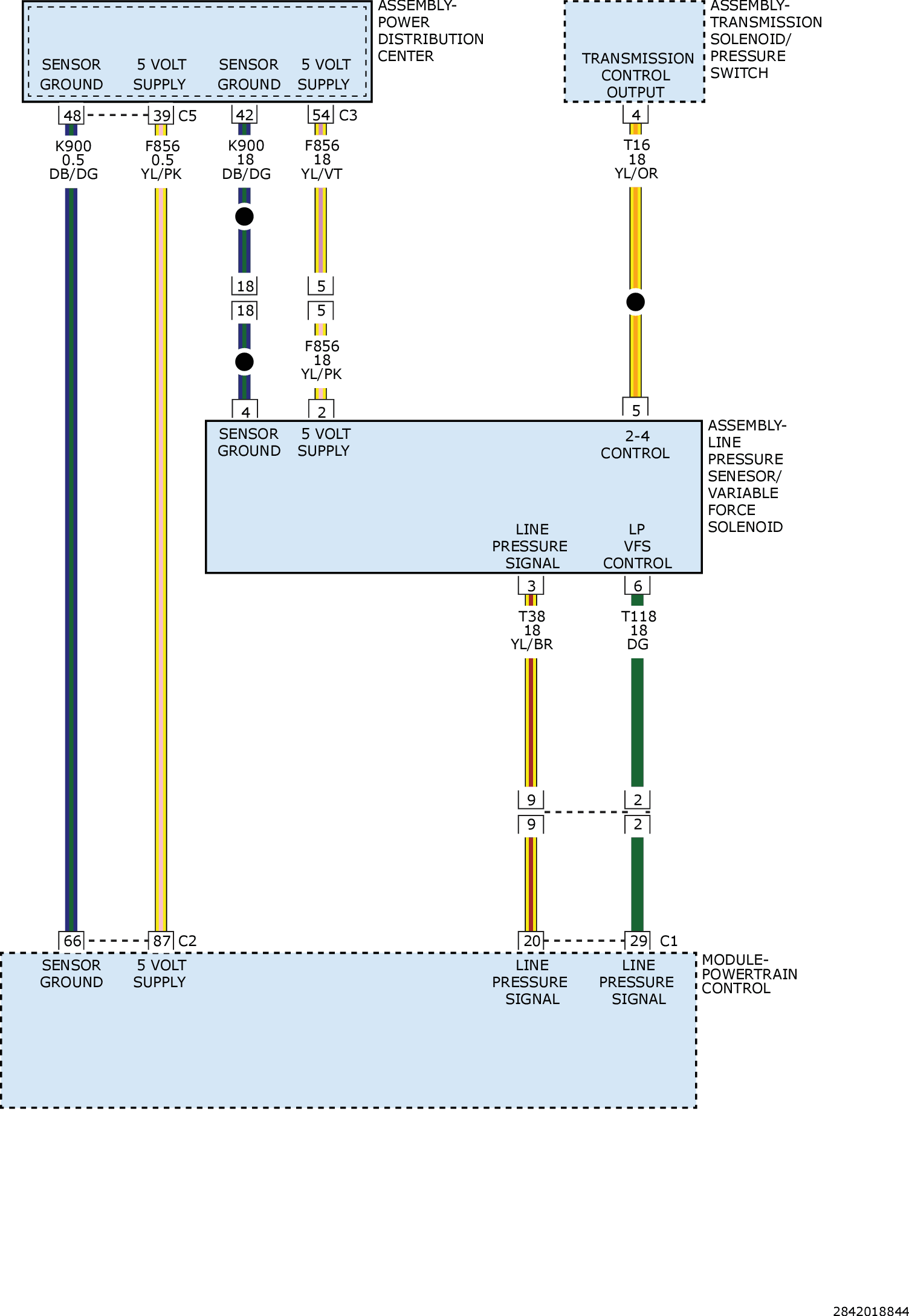

Fig 1: Line Pressure Sensor/Variable Force Solenoid Assembly Control, Power, Ground & Signal Circuit Diagram
