Diagnostic Test

WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.
  1. ACTIVE DTC
    NOTE:

    If this DTC sets intermittently, it is possible that the controller is overheating in extremely hot temperatures. This is considered a normal protection operation. No repair is necessary.

    NOTE:

    Low battery voltage can cause excessive current draw in very hot and cold ambient temperatures. Make sure the battery can pass a load test before continuing. Review Freeze Frame information to determine the ambient temperature when the DTC set.

    NOTE:

    If P2072 is also set, this indicates that the cold weather ice blockage routine has run. No repair action is necessary.

    NOTE:

    Diagnose and repair any Throttle Position sensor, system voltage, or 5-Volt supply DTCs before continuing with this test.

    1. Start the engine and allow it to reach normal operating temperature.
      WARNING:

      When the engine is operating, do not stand in direct line with the fan. Do not put your hands near the pulleys, belts or fan. Do not wear loose clothing. Failure to follow these instructions may result in possible serious or fatal injury.

    2. With the scan tool, select View DTCs.

      Is the status Active for this DTC?

      Yes

      • Go To  2

      No

  2. THROTTLE PLATE INSPECTION
    1. Turn the ignition off.
    2. Remove the air cleaner assembly.
    3. Check for any signs of a foreign material (ice or dirt) on the throttle plate or in the throttle bore that can cause the throttle plate to stick.
    4. Attempt to manually open the throttle plate. Use an appropriate tool that will not damage or mar the throttle body.

      Were any problems found?

      Yes

      • Remove the debris if possible or replace the Throttle Body Assembly. Disconnect the battery when replacing the Throttle Body Assembly. After installation is complete, use a scan tool and select the ETC Relearn function.
      • Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST . .

      No

      • Go To  3
  3. CHECK THE (K124) ETC MOTOR (+) CIRCUIT FOR A SHORT TO VOLTAGE

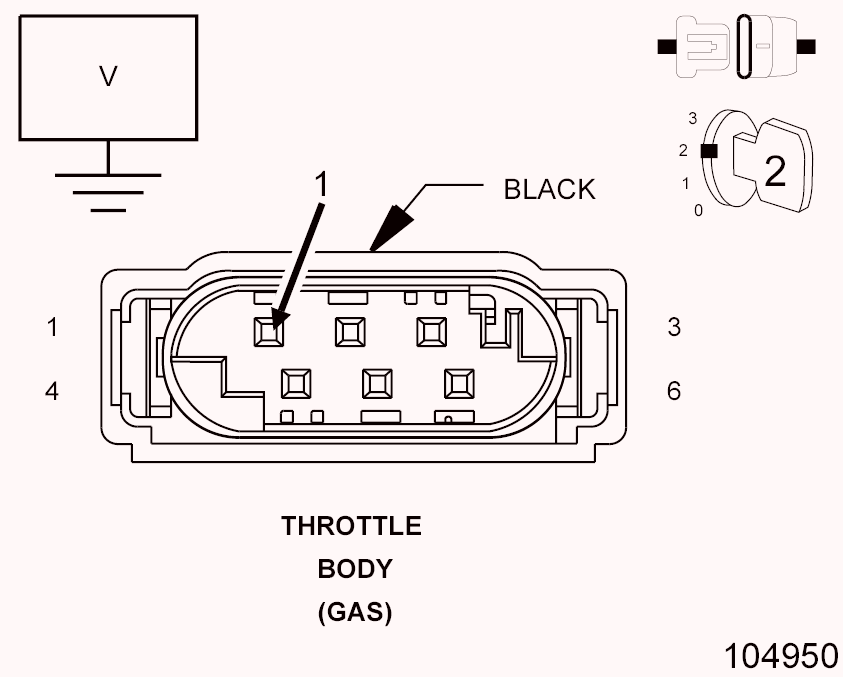

    Fig 1: Measuring Voltage Of ETC Motor Circuit
    GC0100033Courtesy of CHRYSLER GROUP, LLC
    1. Turn the ignition off.
    2. Disconnect the Throttle Body harness connector.
    3. Disconnect the PCM C2 harness connector.
    4. Turn the ignition on.
    5. Measure the voltage of the (K124) ETC Motor (+) circuit.

      Is there any voltage present?

      Yes

      • Repair the (K124) ETC Motor (+) circuit for a short to voltage.
      • Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST . .

      No

      • Go To  4
  4. CHECK THE (K126) ETC MOTOR (-) CIRCUIT FOR A SHORT TO VOLTAGE

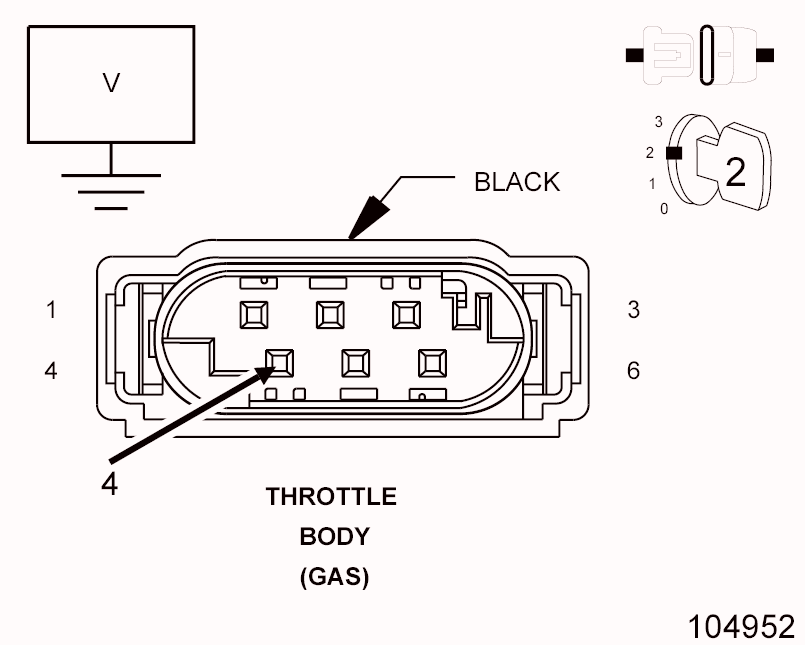

    Fig 2: Measuring Voltage Of ETC Motor Circuit
    GC0100034Courtesy of CHRYSLER GROUP, LLC
    1. Measure the voltage of the (K126) ETC Motor (-) circuit.

      Is there any voltage present?

      Yes

      • Repair the (K126) ETC Motor (-) circuit for a short to voltage.
      • Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST . .

      No

      • Go To  5
  5. CHECK FOR THE (K124) ETC MOTOR (+) CIRCUIT SHORTED TO THE (K126) ETC MOTOR (-) CIRCUIT

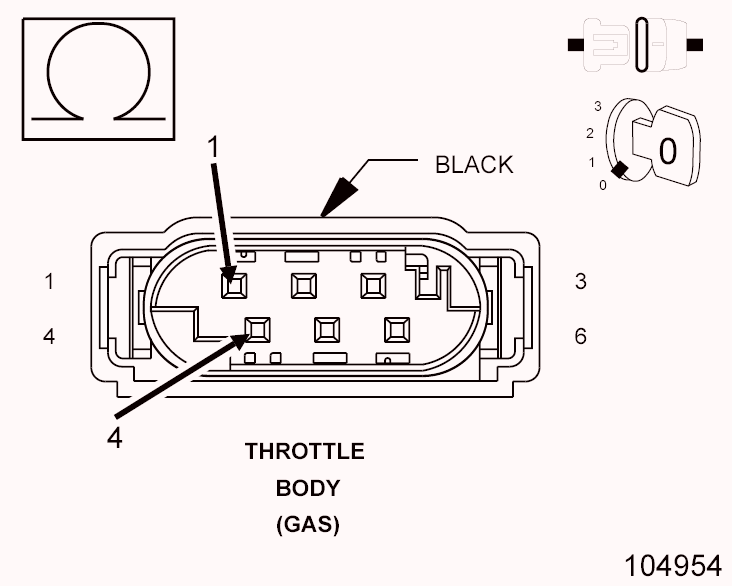

    Fig 3: Measuring Resistance Between ETC Motor Circuit And ETC Motor Circuit
    GC0100035Courtesy of CHRYSLER GROUP, LLC
    1. Turn the ignition off.
    2. Measure the resistance between the (K124) ETC Motor (+) circuit and the (K126) ETC Motor (-) circuit.

      Is the resistance above 10k Ohms?

      Yes

      • Go To  6

      No

      • Repair the short to between the (K124) ETC Motor (+) circuit and the (K126) ETC Motor (-) circuit.
      • Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST . .
  6. CHECK THE (K124) ETC MOTOR (+) CIRCUIT FOR A SHORT TO GROUND

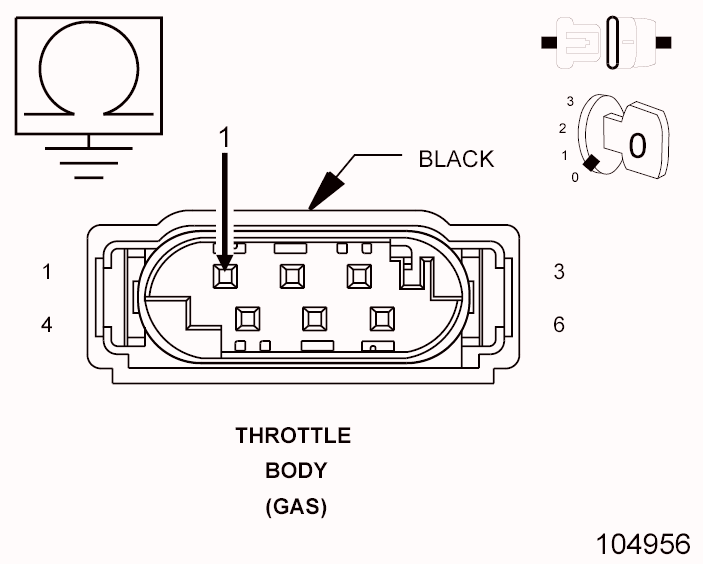

    Fig 4: Measuring Resistance Between Ground And ETC Motor Circuit
    GC0100036Courtesy of CHRYSLER GROUP, LLC
    1. Measure the resistance between ground and the (K124) ETC Motor (+) circuit.

      Is the resistance above 10k Ohms?

      Yes

      • Go To  7

      No

      • Repair the (K124) ETC Motor (+) circuit for a short to ground.
      • Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST . .
  7. CHECK THE (K126) ETC MOTOR (-) CIRCUIT FOR A SHORT TO GROUND

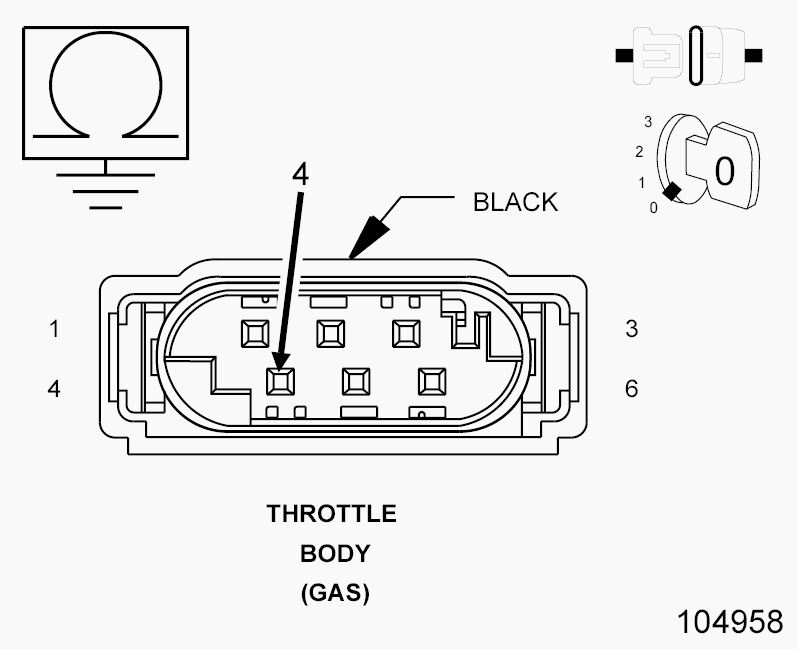

    Fig 5: Measuring Resistance Between Ground And ETC Motor Circuit
    GC0100037Courtesy of CHRYSLER GROUP, LLC
    1. Measure the resistance between ground and the (K126) ETC Motor (-) circuit.

      Is the resistance above 10k Ohms?

      Yes

      • Go To  8

      No

      • Repair the (K126) ETC Motor (-) circuit for a short to ground.
      • Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST . .
  8. CHECK THE (K126) ETC MOTOR (-) CIRCUIT FOR AN OPEN/HIGH RESISTANCE
    CAUTION:

    Do not probe the PCM harness connectors. Probing the PCM harness connectors will damage the PCM terminals resulting in poor terminal to pin connection. Install the GPEC Diagnostic Adaptor to perform the diagnosis.

    1. Connect the (special tool #10436, Adapter, GPEC Diagnostic).
    2. Measure the resistance of the (K126) ETC Motor (-) circuit between the Throttle Body harness connector and the GPEC Adaptor.

      Is the resistance below 5.0 Ohms?

      Yes

      • Go To  9

      No

      • Repair the (K126) ETC Motor (-) circuit for an open or high resistance.
      • Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST . .
  9. CHECK THE (K124) ETC MOTOR (+) CIRCUIT FOR AN OPEN/HIGH RESISTANCE
    1. Measure the resistance of the (K124) ETC Motor (+) circuit between the Throttle Body harness connector and the GPEC Adaptor.

      Is the resistance below 5.0 Ohms?

      Yes

      • Go To  10

      No

      • Repair the (K124) ETC Motor (+) circuit for an open or high resistance.
      • Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST . .
  10. ETC MOTOR
    1. Replace the Throttle Body Assembly in accordance with the service information. After installation is complete, use a scan tool and perform the ETC RELEARN function.
    2. Turn the ignition on.
    3. With the scan tool, erase DTCs.
    4. Cycle the ignition off, and back to the on position.
    5. With the scan tool, view DTCs.

      Did the DTC return?

      Yes

      • Go To  11

      No

  11. POWERTRAIN CONTROL MODULE (PCM)
    1. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Throttle Body and the Powertrain Control Module (PCM).
    2. Look for any chafed, pierced, pinched, or partially broken wires.
    3. Look for broken, bent, pushed out or corroded terminals.
    4. Perform any Technical Service Bulletins that may apply.

      Were any problems found?

      Yes

      No

      • Replace and program the Powertrain Control Module in accordance with the service information.
      • Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST . .
