Diagnostic Test

WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

ACTIVE DTC
NOTE:
If there are any 5-Volt Reference DTCs present along with this DTC, diagnose and repair that DTC before continuing with this test procedure.
1. Start the engine and allow it to idle.
  WARNING:
  When the engine is operating, do not stand in direct line with the fan. Do not put your hands near the pulleys, belts or fan. Do not wear loose clothing. Failure to follow these instructions may result in possible serious or fatal injury.
2. With the scan tool, select View DTCs.
  Is the status Active for this DTC?

  Yes
  - Go To 2
  No
  - Perform the INTERMITTENT CONDITION diagnostic procedure. Refer to INTERMITTENT CONDITION .
CHECK THE (F855) 5-VOLT SUPPLY CIRCUIT VOLTAGE

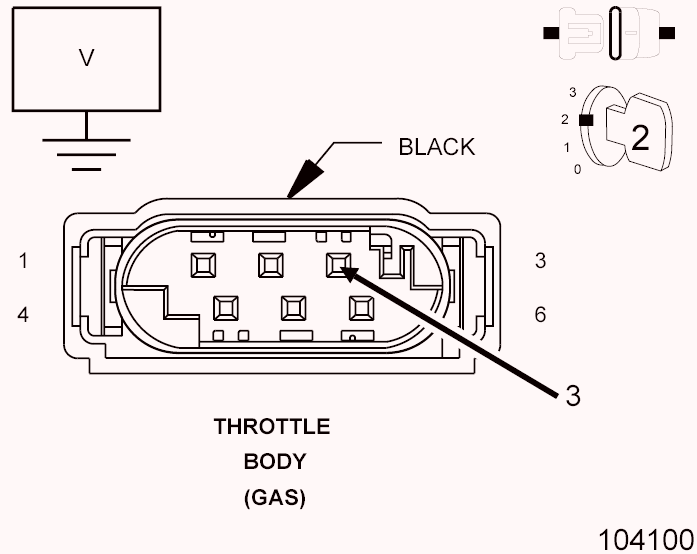

Fig 1: Checking Throttle Position Sensor 5-Volt Supply Circuit Voltage
Courtesy of CHRYSLER GROUP, LLC
1. Turn the ignition off.
2. Disconnect the Throttle Body harness connector.
3. Turn the ignition on.
4. Measure the voltage of the (F855) 5-Volt Supply circuit in the Throttle Body harness connector.
  Is the voltage between 4.8 and 5.2 volts?

  Yes
  - Go To 3
  No
  - Repair the (F855) 5-Volt Supply circuit for an open or shorted circuit.
  - Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST .
CHECK THE (K122) TPS SIGNAL 2 CIRCUIT FOR AN OPEN/HIGH RESISTANCE
1. Turn the ignition off.
2. Disconnect the PCM C2 harness connector.
  CAUTION:
  Do not probe the PCM harness connectors. Probing the PCM harness connectors will damage the PCM terminals resulting in poor terminal to pin connection. Install the GPEC Diagnostic Adaptor to perform the diagnosis.
3. Connect the (special tool #10436, Adapter, GPEC Diagnostic).
4. Measure the resistance of the (K122) TPS Signal 2 circuit between the Throttle Body harness connector and the GPEC Adaptor.
  Is the resistance below 5.0 Ohms?

  Yes
  - Go To 4
  No
  - Repair the (K122) TPS Signal 2 circuit for an open or high resistance.
  - Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST .
CHECK THE (K922) TPS SENSOR GROUND CIRCUIT FOR AN OPEN/HIGH RESISTANCE
1. Measure the resistance of the (K922) TPS Sensor Ground circuit between the Throttle Body harness connector and the GPEC Adaptor.
  Is the resistance below 5.0 Ohms?

  Yes
  - Go To 5
  No
  - Repair the (K922) TPS Sensor Ground circuit for an open or high resistance.
  - Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST .
THROTTLE BODY
1. Replace the Throttle Body Assembly in accordance with the service information. Refer to THROTTLE BODY, REMOVAL .
2. Turn the ignition on.
3. With the scan tool, erase DTCs.
4. Start the engine and allow it to idle.
5. With the scan tool, view DTCs.
  Did the DTC return?

  Yes
  - Go To 6
  No
  - Repair is complete.
  - Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST .
POWERTRAIN CONTROL MODULE (PCM)
1. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Throttle Body and the Powertrain Control Module (PCM).
2. Look for any chafed, pierced, pinched, or partially broken wires.
3. Look for broken, bent, pushed out or corroded terminals.
4. Monitor the scan tool data relative to this circuit and wiggle test the wiring and connectors.
5. Look for the data to change or for the DTC to reset during the wiggle test.
6. Perform any Technical Service Bulletins that may apply.
  Were any problems found?

  Yes
  - Repair as necessary.
  - Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST .
  No
  - Replace and program the Powertrain Control Module (PCM) in accordance with the service information. Refer to MODULE, POWERTRAIN CONTROL, REMOVAL .
  - Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST .
