Diagnostic Test

WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

DTC IS ACTIVE
1. Start the engine and allow it to reach normal operating temperature.
  WARNING:
  When the engine is operating, do not stand in direct line with the fan. Do not put your hands near the pulleys, belts or fan. Do not wear loose clothing. Failure to follow these instructions may result in possible serious or fatal injury.
2. With the scan tool, select View DTCs.
  Is the status Active for this DTC?

  Yes
  - Go To 2
  No
  - Perform the INTERMITTENT CONDITION diagnostic procedure. Refer to INTERMITTENT CONDITION .
(G24) EOT SIGNAL CIRCUIT SHORTED TO GROUND

Fig 1: Checking Engine Oil Temperature Sensor Signal Circuit For Short To Ground
Courtesy of CHRYSLER GROUP, LLC
1. Turn the ignition off.
2. Disconnect the EOT Sensor harness connector.
3. Disconnect the PCM C1 and C2 harness connectors.
4. Measure the resistance between ground and the (G24) EOT Signal circuit in the EOT Sensor harness connector.
  Is the resistance above 100 Ohms?

  Yes
  - Go To 3
  No
  - Repair the (G24) EOT Signal circuit for a short to ground.
  - Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST .
(G24) EOT SIGNAL CIRCUIT SHORTED TO THE (K914) SENSOR GROUND CIRCUIT

Fig 2: Checking Engine Oil Temperature Sensor Signal Circuit For Short To Ground Circuit
Courtesy of CHRYSLER GROUP, LLC
1. Measure the resistance between the (G24) EOT Signal circuit and the (K914) Sensor Ground circuit in the EOT Sensor harness connector.
  Is the resistance above 100 Ohms?

  Yes
  - Go To 4
  No
  - Repair the (G24) EOT Signal circuit for a short to the (K914) Sensor Ground circuit.
  - Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST .
(G24) EOT SIGNAL CIRCUIT OPEN CIRCUIT OR HIGH RESISTANCE

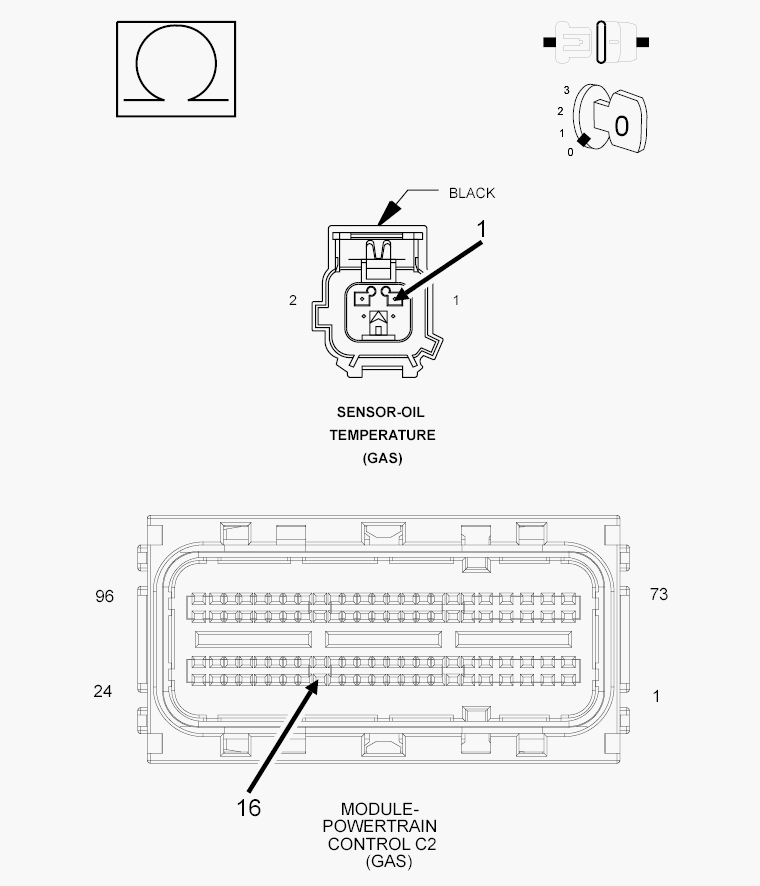

Fig 3: Checking EOT Signal Circuit For Open Or High Resistance
Courtesy of CHRYSLER GROUP, LLC
1. Measure the resistance of the (G24) EOT Signal circuit between the EOT Sensor harness connector and the PCM C2 harness connector.
  Is the resistance below 5.0 Ohms?

  Yes
  - Go To 5
  No
  - Repair the (G24) EOT Signal circuit for an open circuit or high resistance.
  - Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST .
ENGINE OIL TEMPERATURE SENSOR
1. Turn the ignition off.
2. Connect the PCM C1 and C2 harness connectors.
3. Turn the ignition on.
4. With the scan tool, read the Engine Oil Temperature Sensor signal voltage.
  Is the voltage above 4.5 volts with the Engine Oil Temperature Sensor harness disconnected?

  Yes
  - Replace the Engine Oil Temperature Sensor in accordance with the Service Information. Refer to SENSOR, OIL TEMPERATURE, REMOVAL .
  - Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST .
  No
  - Go To 6
POWERTRAIN CONTROL MODULE (PCM)
1. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Engine Oil Temperature Sensor and the Powertrain Control Module (PCM).
2. Look for any chafed, pierced, pinched, or partially broken wires.
3. Look for broken, bent, pushed out or corroded terminals.
4. Monitor the scan tool data relative to this circuit and wiggle test the wiring and connectors.
5. Look for the data to change or for the DTC to reset during the wiggle test.
6. Perform the Technical Service Bulletins that may apply.
  Were any problems found?

  Yes
  - Repair as necessary.
  - Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST .
  No
  - Replace and program the Powertrain Control Module (PCM) in accordance with the Service Information. Refer to MODULE, POWERTRAIN CONTROL, REMOVAL .
  - Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST .
