Section 166 (Starting System (Service Information)): Starter: Removal: 3.6L

WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

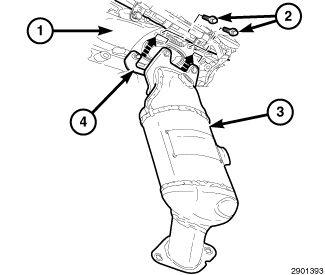

Fig 1: Guide Retainer Plate, Catalytic Converter, Exhaust Manifold & Bolts

Courtesy of CHRYSLER GROUP, LLC

Disconnect and isolate the negative battery cable.
Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
Remove the catalytic converter (3). Refer to CONVERTER, CATALYTIC, REMOVAL .

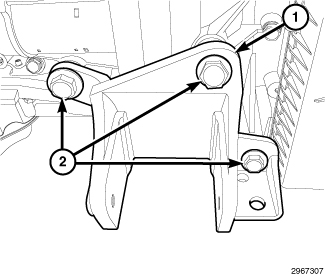

Fig 2: Bolts & Engine Mount Bracket
Courtesy of CHRYSLER GROUP, LLC
Remove the front engine mount through bolt.
Remove the bolts (2) from the front engine mount bracket (1) and remove the bracket.

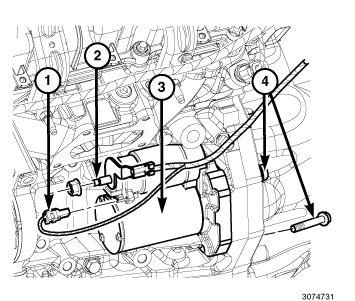

Fig 3: Starter Solenoid Electrical Connector, Solenoid Stud, Starter Mounting Bolts & Starter Assembly
Courtesy of CHRYSLER GROUP, LLC
Disconnect the starter solenoid electrical connector (1) from the starter solenoid terminal.
Remove the battery cable nut and battery cable from the solenoid stud (2).
Remove the starter mounting bolts (4).
Remove the starter assembly (3) from the transmission.
