2.0L TD (3 Bolt)

WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

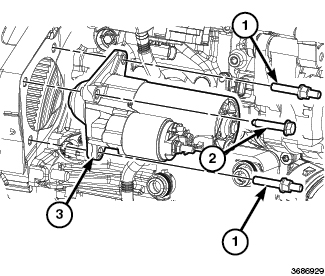

Fig 1: Lower Starter Mounting Stud Bolt, Center Starter Mounting Bolt & Starter
GC0153952Courtesy of CHRYSLER GROUP, LLC
  1. Install the starter (3).
  2. Install the upper and lower starter mounting stud bolts (1).

    Tighten to 27 N.m (20 Ft. Lbs.).

  3. Install the center starter mounting bolt (2).

    Tighten to 27 N.m (20 Ft. Lbs.)

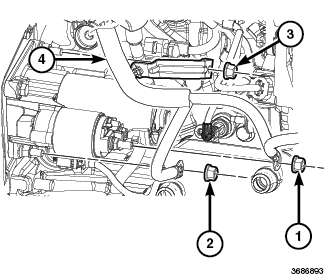

    Fig 2: B+ Cable Retainer
    GC0153951Courtesy of CHRYSLER GROUP, LLC
  4. Position the starter cable assembly cable back to its original position, ground on bottom stud, cable bracket on upper stud and B+ on the starter solenoid stud.
  5. Connect the solenoid connector to the starter.
  6. Install the starter B+ cable retainer (1).

    Tighten to 10 N.m (7 Ft. Lbs.).

  7. Install the upper and lower starter mounting stud nut (1)

    Tighten to 10 N.m (7 Ft. Lbs.).

    Fig 3: Engine Belly Pan & Fasteners
    GC0147566Courtesy of CHRYSLER GROUP, LLC
  8. Install the engine belly pan.
  9. Connect the negative battery cable.
