B25B0-31-Window Position Sensor - No Signal: Notes

WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .

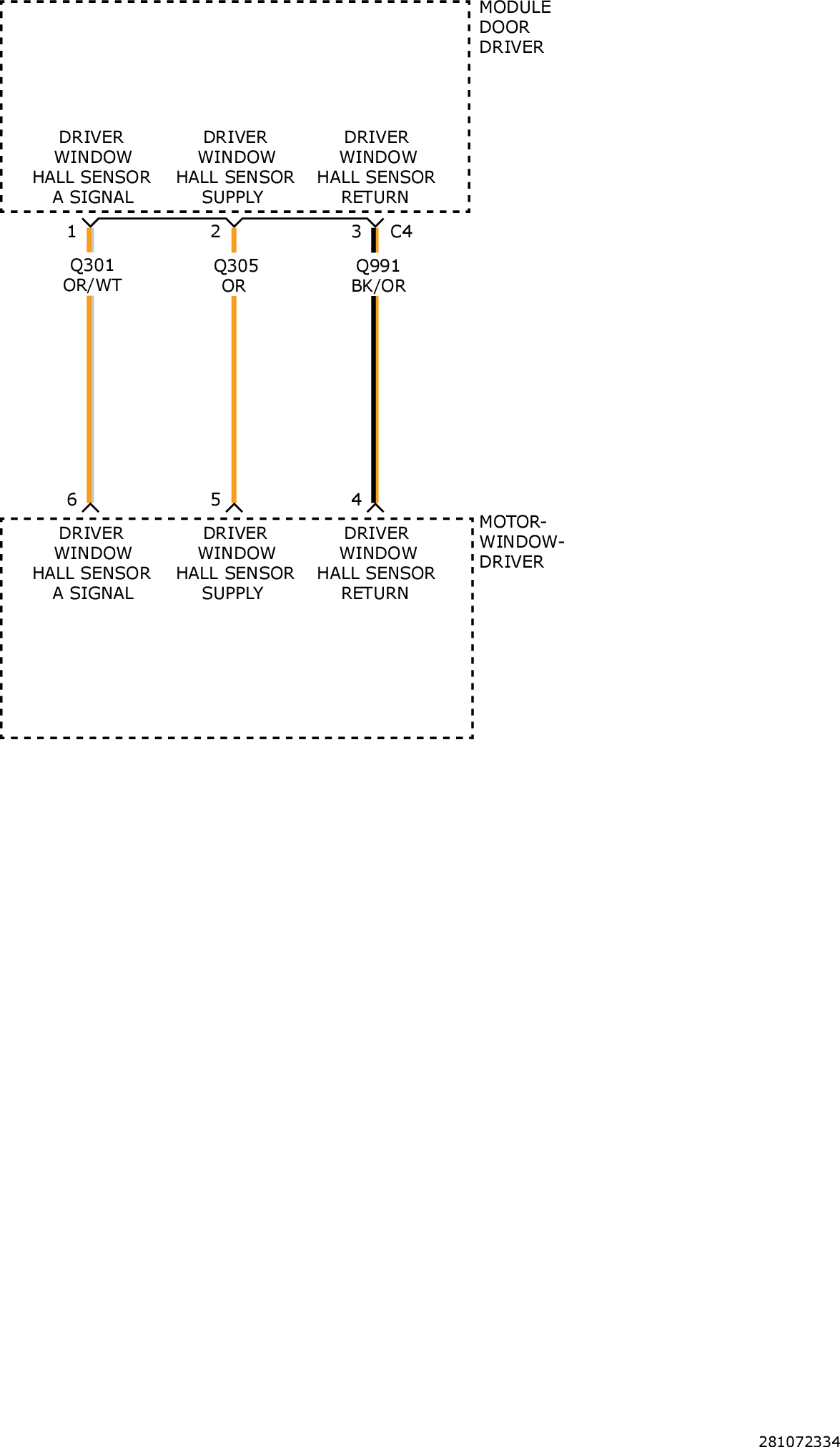

Fig 1: Driver Window Motor Circuit Wiring Diagram
GC0156991Courtesy of CHRYSLER GROUP, LLC
