B1B51-1ST Row Driver SEATBELT Sensor Circuit High: Notes
WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The ORC module can not recognize the difference between the High, Open and Low code. The diagnostics check for all faults of the switch sensor and ground circuit.

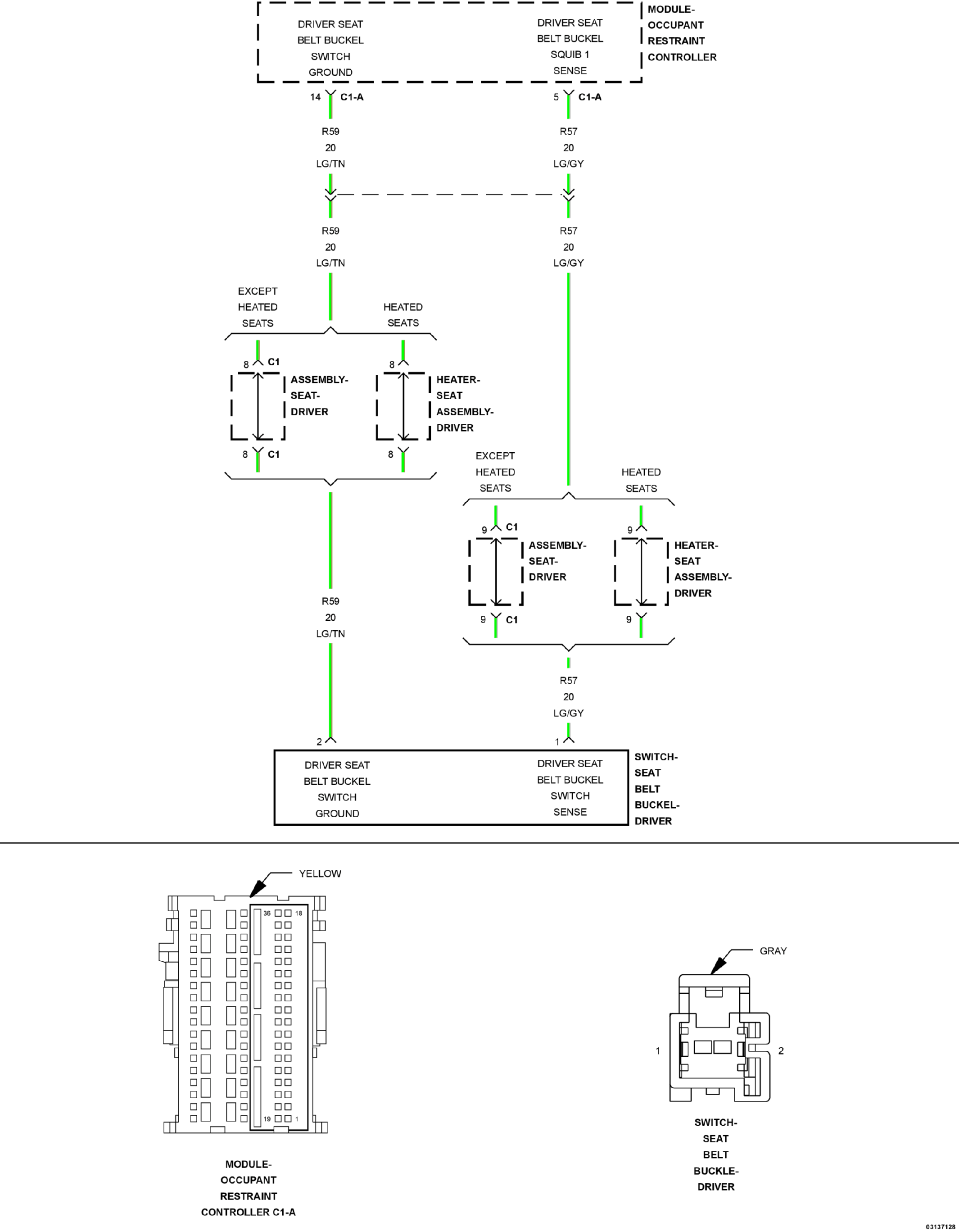

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .
