Evaporator, A/C, Front: Description: Description
WARNING: This page is about a different car, the 2014 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

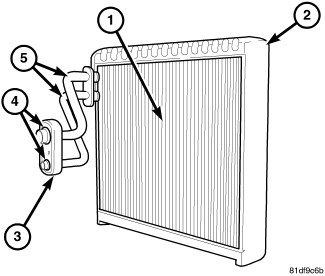

LHD model shown in illustration. RHD model similar.
The A/C evaporator (1) for the heating-A/C system is mounted in the HVAC housing, which is located behind the instrument panel. The A/C evaporator and its insulator (2) are positioned within the HVAC housing so that all air entering the housing must pass over the evaporator fins before it is distributed through the heating-A/C system ducts and outlets.
A tapping block (3) and O-ring seals (4) are used to connect and seal the A/C evaporator tubes (5) to the A/C expansion valve.
The A/C evaporator can only be serviced by removing and disassembling the HVAC housing assembly.
