Beverage Cooler: Outlet

WARNING: This page is about a different car, the 2014 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

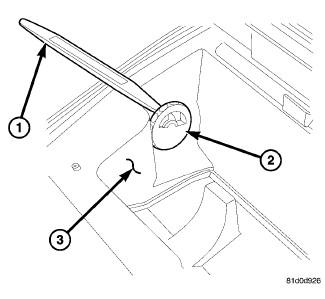

Fig 1: Beverage Cooler Outlet Removal

Courtesy of CHRYSLER GROUP, LLC

Using Trim Stick (special tool #C-4755, Trim Stick) or equivalent (1), disengage the three retaining tabs that secure the beverage cooler outlet (2) to side of the glove box bin (3).

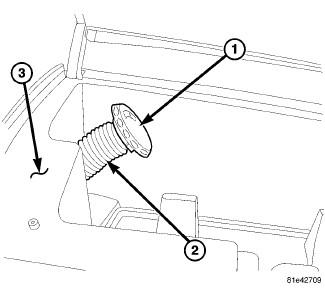

Fig 2: Beverage Cooler Outlet & Hose
Courtesy of CHRYSLER GROUP, LLC

NOTE:
If the beverage cooler cold air supply hose becomes disconnected from the air beverage cooler outlet and falls back into the instrument panel during outlet removal, the beverage cooler bin may need to be removed from the instrument panel for outlet installation. Refer to BIN, INSTRUMENT PANEL, LOWER, REMOVAL .
Carefully pull the beverage cooler outlet (1) away from side of the beverage cooler bin (3) and disconnect the cold air supply hose (2) from the outlet. Make sure the end of the cold air supply hose remains in the bin and does not fall back into the instrument panel.
