Housing-Air Inlet

WARNING: This page is about a different car, the 2014 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

LHD model shown in illustrations. RHD model similar.

Fig 1: Recirculation Air-Door And Pivot Shaft
GC0082728Courtesy of CHRYSLER GROUP, LLC
  1. Carefully install the recirculation-air door (1) into the air inlet housing (2) by pinching the two ends of the air-door together and aligning the pivot shafts of the air-door to the pivot shaft holes in the air inlet housing.
    NOTE:

    Install the recirculation door pivot shaft adapter by carefully pushing it straight into the end of the recirculation door pivot shaft.

  2. Install the recirculation door pivot shaft adapter (3) into the right side pivot shaft of the recirculation air-door. Make sure the adapter is fully engaged to the pivot shaft.

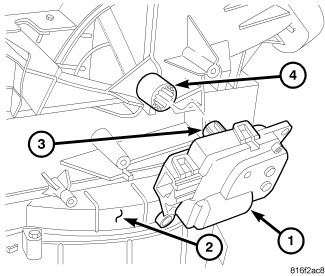

    Fig 2: Recirculation Door Actuator-Align
    GC0082707Courtesy of CHRYSLER GROUP, LLC
  3. Install the recirculation door actuator (1) onto the right side of the air inlet housing (2). If necessary, rotate the actuator slightly to align the splines of the actuator output shaft (3) with those on the recirculation door pivot shaft adapter (4).
  4. Install the two screws that secure the recirculation door actuator to the air inlet housing. Tighten the screws to 2 N.m (17 in. lbs.).
  5. Install the air inlet housing onto the HVAC housing. Refer to HOUSING, HVAC, INSTALLATION .
  6. Install the HVAC housing assembly. Refer to HOUSING, HVAC, INSTALLATION .
