Duct, Instrument Panel Demister: Installation: Installation

WARNING: This page is about a different car, the 2014 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

The demister ducts are serviced with the instrument panel ducts as an assembly.

NOTE:

LHD model shown in illustrations. RHD model similar.

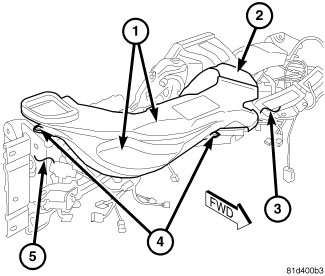

Fig 1: Passenger Side Instrument Panel And Demister Duct Assembly
GC0129268Courtesy of CHRYSLER GROUP, LLC
  1. Position the passenger side instrument panel and demister duct assembly (1) to the instrument panel support (5) and connect the instrument panel and demister duct assembly to the center duct (2) and to the defroster duct (3). Make sure the ducts are fully engaged.
  2. Install the two push-pin retainers (4) that secure the passenger side instrument panel and demister duct assembly to the instrument panel support.

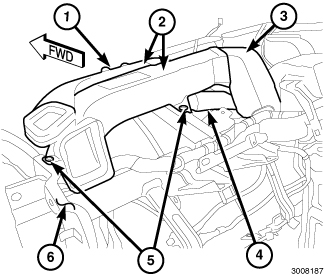

    Fig 2: Driver Side Instrument Panel And Demister Duct Assembly
    GC0147656Courtesy of CHRYSLER GROUP, LLC
  3. Position the driver side instrument panel and demister duct assembly (2) to the instrument panel support (6) and connect the instrument panel and demister duct assembly to the center duct (3) and to the defroster duct (4). Make sure the ducts are fully engaged.
  4. Install the three push-pin retainers (1 and 5) that secure the driver side instrument panel and demister duct assembly to the instrument panel support.
  5. Install the instrument panel cover (Refer to INSTRUMENT PANEL ).
  6. Reconnect the negative battery cable.
