Module, Power, Rear Blower Motor: Description: Description

WARNING: This page is about a different car, the 2014 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Automatic Temperature Control (ATC) shown in illustration. Manual Temperature Control (MTC) similar.

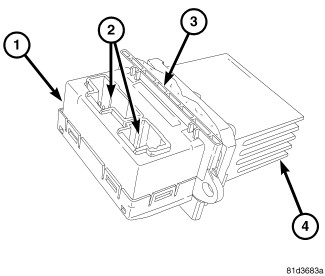

Fig 1: Rear Blower Motor Power Module Assembly

Courtesy of CHRYSLER GROUP, LLC

Both the Automatic Temperature Control (ATC) and Manual Temperature Control (MTC) rear heating and A/C systems use a blower motor power module to control rear blower motor speed.

The rear blower motor power module is mounted to the inboard side of the rear heating and A/C housing, located on the right rear side of the vehicle. The rear blower motor power module consists of a molded plastic case with two integral wire connector receptacles (2) for the power module electronic circuitry, a mounting plate (3) with a gasket and a finned aluminum heat sink (4).

The rear blower motor power module can be accessed for service without removing the rear heating and A/C housing.
