3.6L Engine

WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

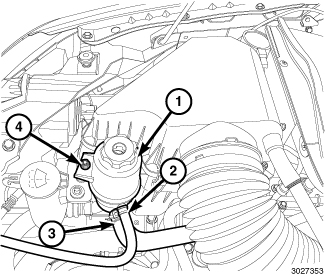

Fig 1: Hose Clamp & Fluid Reservoir

Courtesy of CHRYSLER GROUP, LLC

NOTE:

Before proceeding, refer to WARNING .

Siphon as much fluid as possible from the power steering fluid reservoir.
Remove the hose clamp (3) securing the supply hose to the power steering fluid reservoir (1). Slide the hose off the end of the reservoir fitting.

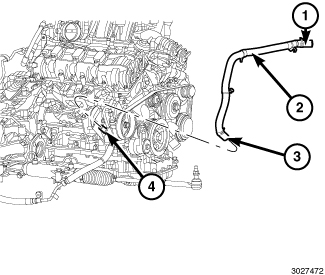

Fig 2: Clamp, Supply Hose & Steering Pump
Courtesy of CHRYSLER GROUP, LLC
Raise and support vehicle. Refer to HOISTING, STANDARD PROCEDURE .
Remove the clamp (3) securing the supply hose (2) to the power steering pump (4) supply fitting, then slide the hose off the supply fitting and remove from vehicle.
