2.0L/2.4L Engine

WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Before proceeding, refer to WARNING .

Siphon as much fluid as possible from the power steering fluid reservoir.

Fig 1: Supply Hose
Courtesy of CHRYSLER GROUP, LLC
Remove the clamp (2) securing the supply hose to the power steering pump supply fitting (3), then remove the hose from the supply fitting.

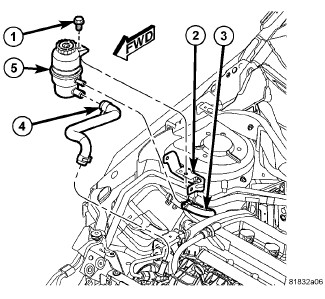

Fig 2: Fluid Reservoir, Return Hose, Supply Hose & Mounting Screw
Courtesy of CHRYSLER GROUP, LLC
Remove the hose clamp securing the supply hose (4) to the power steering fluid reservoir (5). Slide the hose off the end of the reservoir fitting and remove from vehicle.
