3.6L Engine

WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

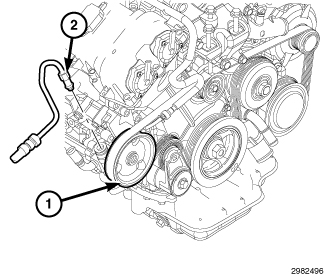

Fig 1: Hose Fitting & Pump

Courtesy of CHRYSLER GROUP, LLC

NOTE:

Before proceeding, refer to WARNING .

Siphon as much fluid as possible from the power steering fluid reservoir.
Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
Remove the pressure hose (2) at the pump (1).

Fig 2: Pressure Hose, Return Hose & Tube Nuts
Courtesy of CHRYSLER GROUP, LLC
Unscrew the tube nut (3), then remove the pressure hose (4) at the steering gear.

Fig 3: Power Steering Hose Routing Clamps & Screws
Courtesy of CHRYSLER GROUP, LLC
Remove the screws (1) securing the power steering hose routing clamps (2) to the rear of the crossmember.
Remove the power steering pressure hose from the vehicle.
