2.0L Diesel Engine

WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

Before proceeding, refer to WARNING .

Fig 1: Removing/Installing Pressure Hose At Pump Pressure Port - Diesel Engine
GC0082522Courtesy of CHRYSLER GROUP, LLC
  1. Siphon as much fluid as possible from power steering fluid reservoir.
  2. Remove the engine appearance cover.
  3. Remove the pressure line (3) at the pump (4).
  4. Remove the pressure line routing bracket bolt (2) at the upper mount (7).
  5. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .

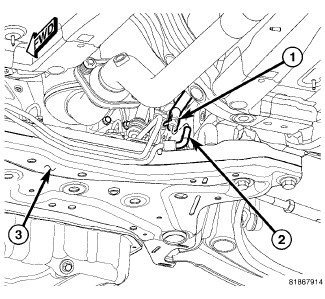

    Fig 2: Return Hose At Return Tube
    GC0082526Courtesy of CHRYSLER GROUP, LLC
  6. Remove the return hose (1) at the return tube (2) and allow any fluid in the hose to drain. If equipped with a screw-clamp, be sure to save the original clamp for reinstallation.
  7. Remove belly pan below engine.

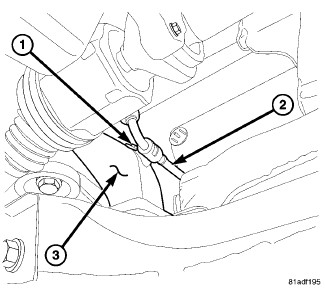

    Fig 3: Pressure Hose & Routing Clamp Screw
    GC0122208Courtesy of CHRYSLER GROUP, LLC
  8. Remove the routing clamp screw (1) securing the pressure hose (2) to the right side of the crossmember (3).
    Fig 4: Pressure Hose, Return Hose & Tube Nuts
    GC0122200Courtesy of CHRYSLER GROUP, LLC
  9. Unscrew the tube nut (3), then remove the pressure hose (4) at the steering gear.
    Fig 5: Power Steering Hose Routing Clamps & Screws
    GC0120780Courtesy of CHRYSLER GROUP, LLC
  10. Remove the screws (1) securing the power steering hose routing clamps (2) to the rear of the crossmember.
  11. Remove the power steering pressure hose from the vehicle.
