Right-Hand-Drive - 2.0L Diesel Engine

WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Power steering fluid hoses must remain away from the exhaust system, driveshafts, vehicle components and any unfriendly surface that can possibly damage the hoses.

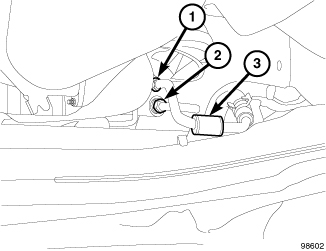

Fig 1: Removing/Installing Return Hose & Pressure Hose At Steering Gear

Courtesy of CHRYSLER GROUP, LLC

Using a lint free towel, wipe clean the open power steering hose end and the power steering gear port. Replace any used O-rings with new. Lubricate the O-ring with power steering fluid.
Install the power steering pressure hose into the engine compartment from below.
Install the pressure hose at the gear. Tighten the tube nut (2) to 32 N.m (24 ft. lbs.).
Lower the vehicle.

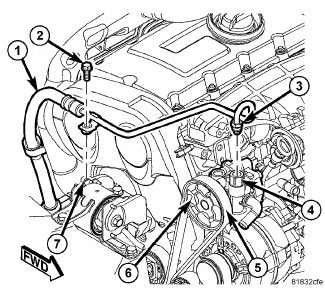

Fig 2: Removing/Installing Pressure Hose At Pump Pressure Port - Diesel Engine
Courtesy of CHRYSLER GROUP, LLC
Install the pressure line (3) at the pump pressure port (4). Tighten the tube nut to 32 N.m (24 ft. lbs.).
Install the pressure line routing bracket bolt (2) to the upper mount (7). Tighten the bolt to 24 N.m (18 ft. lbs.).
Fill and bleed the power steering system. Refer to STANDARD PROCEDURE .
Check for leaks.
Install the engine appearance cover.
