Cooler, Power Steering: Description: Description

WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

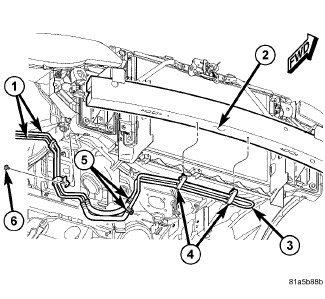

Fig 1: Power Steering Fluid Cooler Line, Return Hoses, Clamps & Push Pins

Courtesy of CHRYSLER GROUP, LLC

The cooler (3) is placed in series with the power steering fluid return hose, between the steering gear fluid outlet port and the fluid return hose leading to the power steering fluid reservoir. It is attached to the front bumper reinforcement (2).
