Shroud, Steering Column, Upper: Installation: Installation

WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

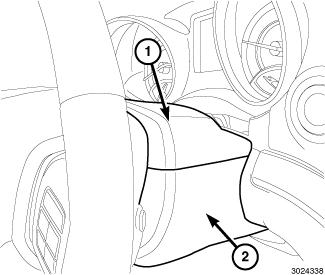

Fig 1: Steering Column Shrouds

Courtesy of CHRYSLER GROUP, LLC

Install the upper shroud (1) onto the lower shroud (2), clipping the shrouds to one another.

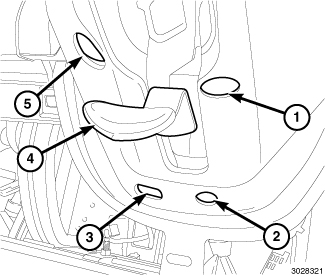

Fig 2: Tilt Lever, Three Screws & Gap Hider Clips
Courtesy of CHRYSLER GROUP, LLC
Install the three screws (1, 2, 5) attaching the lower shroud to the steering column.
Push the tilt lever (4) upward, locking the column in place.
