Diagnostic Test

WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK FOR APPLICABLE TSB
    1. Check for any applicable Service Bulletins that may apply for this issue.

      Were any Service Bulletins applicable?

      Yes

      • Perform the applicable TSB. Erase the DTC and perform the verification test.
      • Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST . .

      No

      • Go To  2
  2. CHECK FOR AN ACTIVE DTC
    1. Turn the ignition on.
    2. Read and copy the DTC's and Freeze Frame Data.
    3. Start the engine, or crank the engine for 10 seconds.
      NOTE:

      If the vehicle starts and runs, wiggle test the wiring and see if problem duplicates or the fault sets.

      Is the DTC active?

      Yes

      • Go To  5

      No

      • Go To  3
  3. WIRE HARNESS/CKP SENSOR INSPECTION
    1. Turn the ignition off.
    2. Disconnect the harness connectors at the PCM and Crank Sensor and inspect for wire chaffing or rub conditions, terminals pushed out on the wiring connector, bent terminals at the PCM and Crank Sensor, water in the connector cavities, presence of corrosion on the terminals of the connectors or components.
    3. Visually inspect the mounting area of Crank Sensor for debris/damage or a loose sensor. Remove the Crank Sensor and inspect the end of the sensor for signs of damage or debris. Rotate the engine and if possible, inspect the target wheel for any signs of damage. Reinstall the Crank Sensor and ensure that the sensor is properly installed and torqued to proper specification.
      NOTE:

      Due to the fact that this DTC is set by an intermittent loss of the signal, the most likely cause is a poor connection at the Crank Sensor or PCM terminals, or a poor signal between the Crank Sensor and target wheel. Because of this, unplugging and reconnecting the harness connectors, or repositioning the Crank Sensor will often repair the condition that set the DTC.

      Were any problems found?

      Yes

      No

      • Go To  4
  4. CHECK THE VEHICLE'S REPAIR HISTORY
    1. Check the history of the vehicle for previous crank sensor related DTCs within the past 90 days.

      Did the repair history show that the vehicle was in dealership for a crank sensor fault within the past 90 days?

      Yes

      • Replace the Crank Sensor in accordance with the Service Information. The "Cam/Crank Relearn" Procedure  must be performed every time there has been a repair/replacement made to a CMP Sensor and/or CKP sensor, flywheel, valvetrain, timing chain or gears. Failure to do so can cause a misfire fault to set. With the scan tool, perform the "Cam/Crank Relearn" Procedure.
      • Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST . .

      No

      • Test complete. Reconnect the harness connectors, and erase the DTC. The most likely cause was a poor connection at one of the harness connectors. Verify the DTC does not return.
      • Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST . .
  5. CHECK THE (F855) 5-VOLT SUPPLY CIRCUIT VOLTAGE
    Fig 1: Checking 5-Volt Supply Circuit Voltage
    GC0149901Courtesy of CHRYSLER GROUP, LLC
    1. Turn the ignition off.
    2. Disconnect the CKP Sensor harness connector.
    3. Turn the ignition on.
    4. Measure the voltage between ground and the (F855) 5-Volt Supply circuit at the CKP Sensor harness connector.

      Is the voltage between 4.8 and 5.2 volts?

      Yes

      • Go To  6

      No, voltage is below 4.8 volts:

      • Repair the 5-Volt Supply circuit for an open or short to ground.
      • Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST . .

      No, voltage is above 5.2 volts:

      • Repair the 5-Volt Supply circuit for a short to voltage.
      • Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST . .
  6. CHECK THE (K24) CKP SIGNAL CIRCUIT VOLTAGE
    Fig 2: Checking CKP Signal Circuit Voltage
    GC0149896Courtesy of CHRYSLER GROUP, LLC
    1. Measure the voltage between ground and the (K24) CKP Signal circuit at the CKP Sensor harness connector.

      Is the voltage between 4.8 and 5.2 volts?

      Yes

      • Go To  7

      No

      • Go To  9

      No

      • Repair the CKP Sensor Signal circuit for a short to voltage.
      • Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST . .

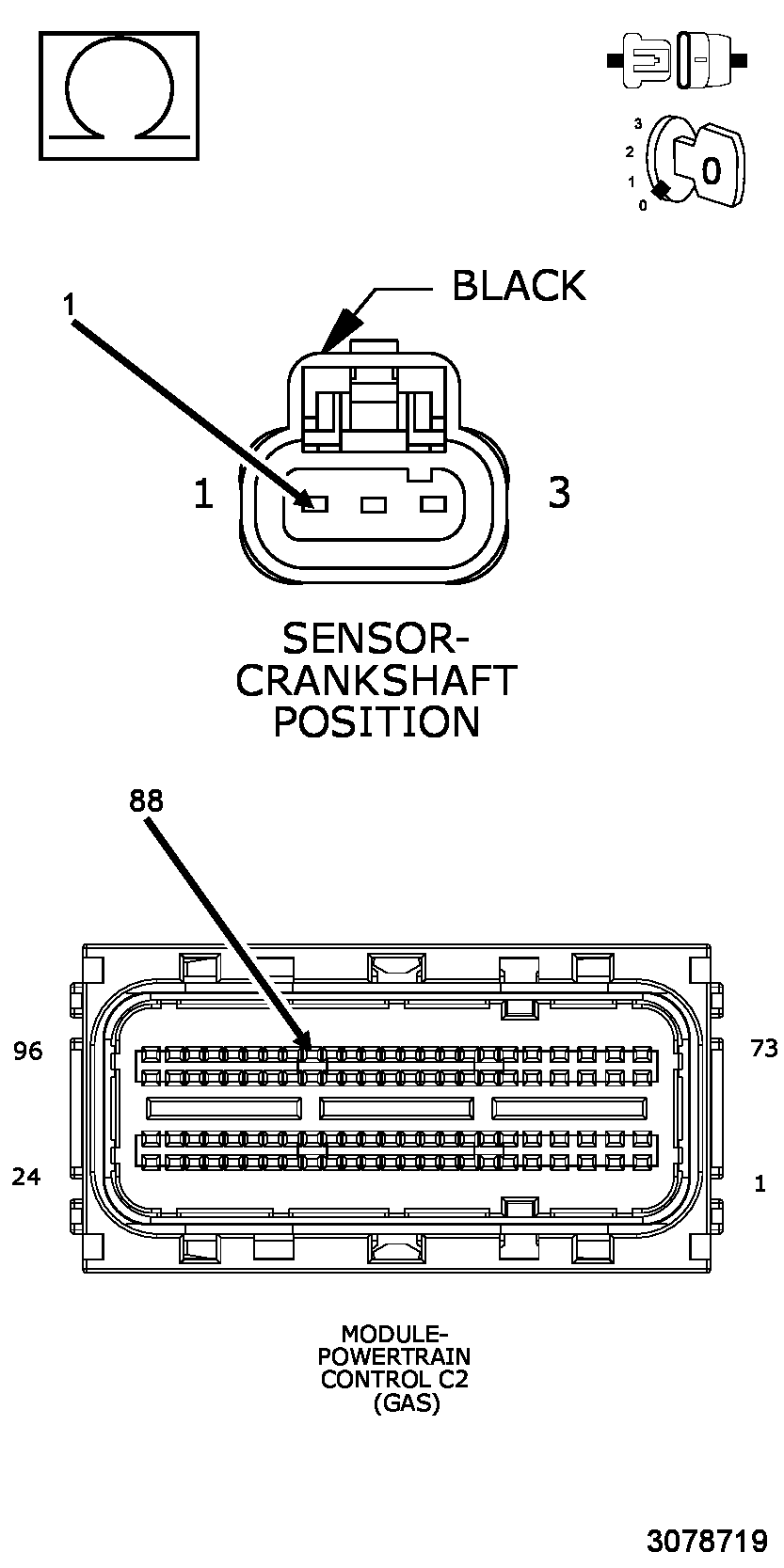

  7. CHECK THE (K925) SENSOR GROUND CIRCUIT FOR AN OPEN/HIGH RESISTANCE
    Fig 3: Checking Sensor Ground Circuit For Open
    GC0149897Courtesy of CHRYSLER GROUP, LLC
    1. Turn the ignition off.
    2. Disconnect the PCM C2 harness connector.
    3. Measure the resistance of the (K925) CKP Sensor Ground circuit between the CKP Sensor harness connector and the PCM C2 harness connector.

      Is the resistance below 3.0 Ohms?

      Yes

      • Go To  8

      No

      • Repair the (K925) CKP Sensor Ground circuit for an open or high resistance.
      • Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST . .
  8. TONE WHEEL/PULSE RING INSPECTION
    1. Turn the ignition off.
    2. Disconnect the battery ground cable.
    3. Remove the CKP Sensor.
    4. Visually inspect the sensor mounting location for damage, foreign material.
    5. Rotate the engine and if possible inspect the target wheel for any signs of damage.

      Were any problems found?

      Yes

      • Repair Issues in mounting location. Repair or replace the Tone Wheel / Pulse Ring as necessary. The "Cam/Crank Relearn" Procedure  must be performed every time there has been a repair/replacement made to a CMP Sensor and/or CKP sensor, flywheel, valvetrain, timing chain or gears. Failure to do so can cause a misfire fault to set. With the scan tool, perform the "Cam/Crank Relearn" Procedure.
      • Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST . .

      No

      • Replace the Crank Position Sensor in accordance with the Service Information. The "Cam/Crank Relearn" Procedure  must be performed every time there has been a repair/replacement made to a CMP Sensor and/or CKP sensor, flywheel, valvetrain, timing chain or gears. Failure to do so can cause a misfire fault to set. With the scan tool, perform the "Cam/Crank Relearn" Procedure.
      • Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST . .
  9. CHECK THE (K24) CKP SIGNAL CIRCUIT FOR A SHORT TO GROUND
    Fig 4: Checking CKP Signal Circuit For Short To Ground
    GC0149900Courtesy of CHRYSLER GROUP, LLC
    1. Turn the ignition off.
    2. Disconnect the PCM C2 harness connector.
    3. Measure the resistance between ground and the (K24) CKP Signal circuit at the Crankshaft Position Sensor harness connector.

      Is the resistance above 10K Ohms?

      Yes

      • Go To  10

      No

      • Repair the (K24) CKP Signal circuit for a short to ground.
      • Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST . .
  10. CHECK THE (K24) CKP SIGNAL CIRCUIT FOR AN OPEN/HIGH RESISTANCE
    Fig 5: Checking CKP Signal Circuit For Open/High Resistance
    GC0149899Courtesy of CHRYSLER GROUP, LLC
    1. Measure the resistance of the (K24) CKP Signal circuit between the Crankshaft Position Sensor harness connector and the PCM C2 harness connector.

      Is the resistance below 3.0 Ohms?

      Yes

      • Go To  11

      No

      • Repair the (K24) CKP Signal circuit for an open circuit or high resistance.
      • Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST . .
  11. POWERTRAIN CONTROL MODULE (PCM)
    1. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Crankshaft Position Sensor and the Powertrain Control Module (PCM).
    2. Look for any chafed, pierced, pinched, or partially broken wires.
    3. Look for broken, bent, pushed out or corroded terminals. Verify that there is good pin to terminal contact in the CKP Sensor and Powertrain Control Module connectors.
    4. Monitor the scan tool data relative to this circuit and wiggle test the wiring and connectors.
    5. Look for the data to change or for the DTC to reset during the wiggle test.
      NOTE:

      Due to the fact that this DTC is set by an intermittent loss of the signal, the most likely cause is a poor connection at the Crank Sensor or PCM terminals, or a poor signal between the Crank Sensor and target wheel. Because of this, unplugging and reconnecting the harness connectors, or repositioning the Crank Sensor will often repair the condition that set the DTC.

      Were any problems found?

      Yes

      No
