2.4L - Primary Thermostat

WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

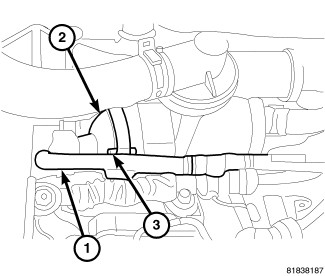

Fig 1: Primary Thermostat
GC0128553Courtesy of CHRYSLER GROUP, LLC
1 - COOLANT HOSE
2 - INLET HOUSING
3 - BOLT
  1. Drain the cooling system. Refer to STANDARD PROCEDURE .
  2. Remove air cleaner body. Refer to BODY, AIR CLEANER, REMOVAL .
  3. Disconnect the coolant hose (1) from inlet housing (2).
  4. Remove the bolts (3) and the inlet housing (2).
  5. Remove the thermostat assembly, and clean sealing surfaces.
