2.4L - Primary Thermostat

WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

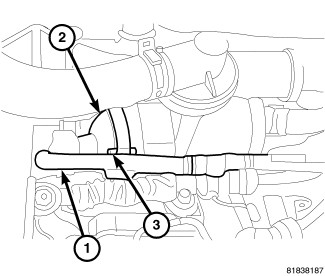

Fig 1: Primary Thermostat
GC0128556Courtesy of CHRYSLER GROUP, LLC
1 - COOLANT HOSE
2 - INLET HOUSING
3 - BOLT
  1. Position the thermostat into the water plenum, aligning air bleed with the location notch on inlet housing (2).
  2. Install the inlet housing (2) onto coolant adapter. Tighten bolts (3) to 9 N.m (80 in. lbs.).
  3. Connect the coolant hose (1) to the inlet housing (2).
  4. Install air cleaner body. Refer to BODY, AIR CLEANER, INSTALLATION .
  5. Fill the cooling system. Refer to STANDARD PROCEDURE .
