Section 152 (Engine Cooling System): Description: Description
WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

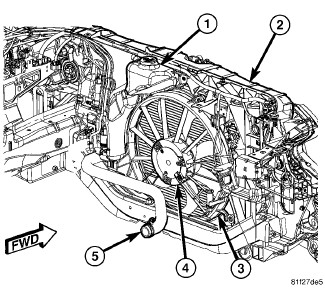

| 1 - WINDSHIELD WASHER RESERVOIR |
| 2 - UPPER SUPPORT |
| 3 - FAN SHROUD |
| 4 - FAN MOTOR |
| 5 - LOWER RADIATOR HOSE |
The cooling system consists of an engine cooling module, thermostat, pressure coolant recovery container on the 3.6L engine and on the 2.0L Diesel engines, coolant, hoses, and a water pump to circulate the coolant. The engine cooling module consists of a radiator, electric fan, shroud, transmission oil cooler, and air conditioning condenser.
