TENSIONER, Belt: Removal: 2.4L
WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

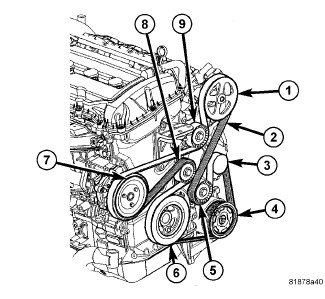

| 1 - POWER STEERING PUMP |
| 2 - ACCESSORY DRIVE BELT |
| 3 - GENERATOR |
| 4 - AIR CONDITIONING COMPRESSOR |
| 5 - LOWER IDLER PULLEY |
| 6 - CRANKSHAFT PULLEY |
| 7 - WATER PUMP PULLEY |
| 8 - ACCESSORY DRIVE BELT TENSIONER |
| 9 - UPPER IDLER PULLEY |
- Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
- Remove the splash shield.
- Remove the serpentine belt (2). Refer to BELT, SERPENTINE, REMOVAL .
- Remove the bolt and drive belt tensioner (8).
