TENSIONER, Belt: Installation: 2.4L
WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

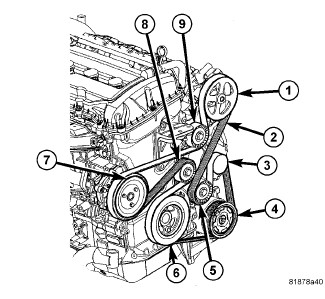

| 1 - POWER STEERING PUMP |
| 2 - ACCESSORY DRIVE BELT |
| 3 - GENERATOR |
| 4 - AIR CONDITIONING COMPRESSOR |
| 5 - LOWER IDLER PULLEY |
| 6 - CRANKSHAFT PULLEY |
| 7 - WATER PUMP PULLEY |
| 8 - ACCESSORY DRIVE BELT TENSIONER |
| 9 - UPPER IDLER PULLEY |
- Install the belt tensioner (8). Tighten the bolt to 50 N.m (37 ft. lbs.).
- Install the accessory drive belt (2). Refer to BELT, SERPENTINE, INSTALLATION .
- Install the belt splash shield.
- Remove the support and lower the vehicle.
