2.0L Diesel

WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery.
Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .

Fig 1: Engine Belly Pan & Fasteners
Courtesy of CHRYSLER GROUP, LLC
If equipped, remove lower engine belly pan cover.

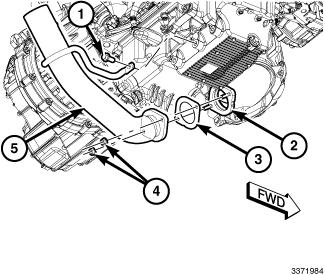

Fig 2: DPF Flange, Gasket, Exhaust Crossunder Pipe & Fasteners
Courtesy of CHRYSLER GROUP, LLC
Remove the cross-under support bolt (1).
Remove the front flange nuts (4) from the flange studs.
Discard the flange gasket (3).

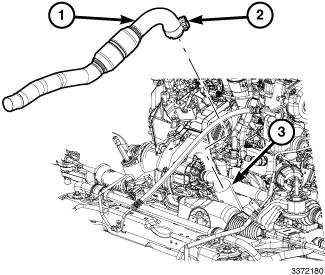

Fig 3: Clamp, Down Pipe & Cross-Under Pipe
Courtesy of CHRYSLER GROUP, LLC
Loosen clamp (2) and separate the down pipe (1) from cross-under pipe (3).
Remove the cross-under pipe (3) from vehicle.
