Converter, Catalytic: Removal: 3.6L

WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

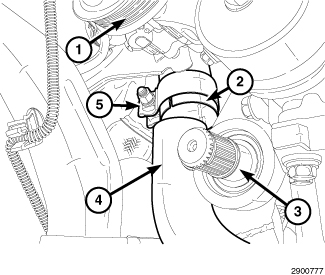

Fig 1: Cross-Under Pipe

Courtesy of CHRYSLER GROUP, LLC

Remove the cross-under pipe (4) from vehicle. Refer to PIPE, EXHAUST CROSSUNDER, REMOVAL .

Fig 2: Guide Retainer Plate, Catalytic Converter, Exhaust Manifold & Bolts
Courtesy of CHRYSLER GROUP, LLC

NOTE:
The lower bolts for the converter flange are used to hold a guide retainer plate (4). The retainer does not need to be removed. The catalytic converter (3) is held in by the plate and upper bolts.
Disconnect the temperature and oxygen sensor electrical connectors.
Remove the catalytic converter (3) to exhaust manifold (1) upper bolts (2).
Remove the catalytic converter (3) by lifting and sliding the flange up and away from the exhaust manifold (1).
Remove the temperature and oxygen sensors.
