Standard Procedure - Valve Timing Verification

WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:

Painted or colored chain links are used during initial engine assembly and can not be relied upon for valve timing verification. These markings are in different locations for early production, late production and service parts. Only use TDC marks, cylinder head cover sealing surface and camshaft sprocket marks to verify valve timing or engine damage may result.

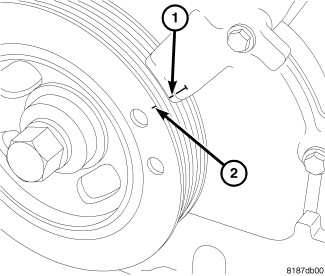

Fig 1: Setting Engine To Top Dead Center
GC0084131Courtesy of CHRYSLER GROUP, LLC
  1. Remove engine cover.
  2. Remove cylinder head cover. Refer to COVER(S), CYLINDER HEAD, REMOVAL .
  3. Set engine to TDC (1, 2).

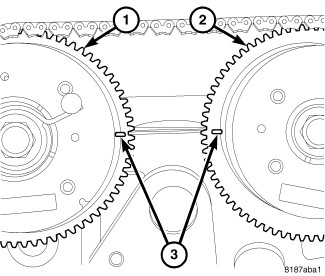

    Fig 2: Camshaft Timing Marks
    GC0084080Courtesy of CHRYSLER GROUP, LLC
  4. The marks on the camshaft sprockets (3) should be in line with the cylinder head cover sealing surface.
  5. Install cylinder head cover. Refer to COVER(S), CYLINDER HEAD, INSTALLATION .
  6. Install the engine cover.
