Crankshaft Sprocket

WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

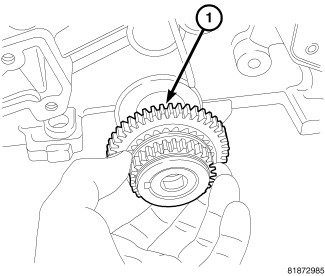

Fig 1: Crankshaft Sprocket

Courtesy of CHRYSLER GROUP, LLC

Install crankshaft sprocket (1) onto crankshaft.

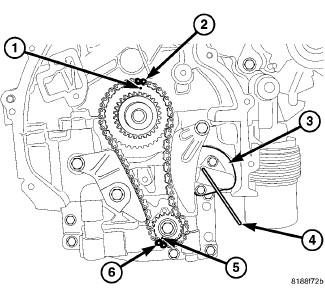

Fig 2: Oil Pump Drive Chain, Oil Pump Drive Chain Tensioner & Timing Marks On Chain
Courtesy of CHRYSLER GROUP, LLC
Install oil pump drive chain. Verify that Oil pump is correctly timed (1, 2, 5, 6).

Fig 3: Pushing Tensioner Piston Back Into Tensioner Body
Courtesy of CHRYSLER GROUP, LLC
Reset oil pump drive chain tensioner by pushing plunger inward and install tensioner pin (special tool #8514, Pins, Tensioner).

Fig 4: Oil Pump Drive Chain, Oil Pump Drive Chain Tensioner & Timing Marks On Chain
Courtesy of CHRYSLER GROUP, LLC
Install oil pump drive chain tensioner (3) and remove Tensioner Pin (special tool #8514, Pins, Tensioner) (4).
Install timing chain. Refer to CHAIN AND SPROCKETS, TIMING, INSTALLATION .
Install oil pan. Refer to PAN, OIL, INSTALLATION .
Fill engine with oil. Refer toSTANDARD PROCEDURE .
Start engine and check for leaks.

NOTE:

The Cam/Crank Variation Relearn procedure must be performed using the scan tool anytime there has been a repair/replacement made to a powertrain system. For example: flywheel, valvetrain, camshaft and/or crankshaft sensors or components. Refer to appropriate Engine Electrical Diagnostics article.
