Plate, Identification: Description: Description

WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

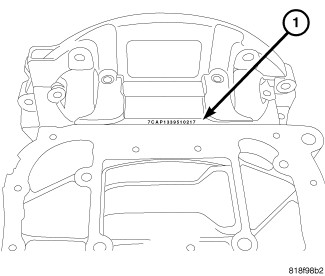

Fig 1: Locating Engine Serial Number
GC0121418Courtesy of CHRYSLER GROUP, LLC

The engine serial number (1) is located between the oil pan and the bellhousing. The serial number contains engine build date, build location, and displacement.

Example: 8CAP1339710217

WORLD ENGINE
8 C A P1 339 7 1 0217
Model Year Engine Displacement Engine Build Variation (with oil cooler, turbo, for MMNA) Engine Plant Julian Day of Year Julian Year 2007 Shift Build Sequence Number
2008 A = 1.8L P1 = GEMA North
B = 2.0L P2 = GEMA South
C = 2.4L -
