Manifold, Intake: Installation: Installation

WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

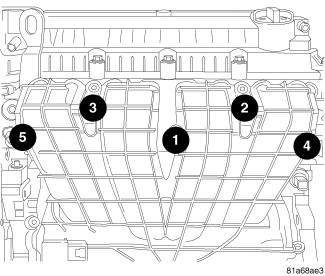

Fig 1: Removing/Installing Intake Bolts In Sequence
GC0082457Courtesy of CHRYSLER GROUP, LLC
  1. Clean all gasket surfaces.
  2. Replace intake manifold gasket.
  3. Install intake manifold, tighten bolts to 25 N.m (220 in. lbs.).
  4. Install the fuel rail assembly to intake manifold. Tighten bolts to 23 N.m (200 in. lbs.).

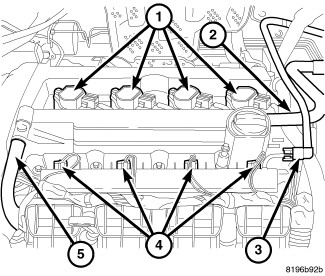

    Fig 2: Identifying Ignition Coil Electrical Connectors, Air Hose, PCV Hose, Fuel Line & Injectors
    GC0121526Courtesy of CHRYSLER GROUP, LLC
  5. Connect fuel injector electrical connectors (4).
  6. Inspect quick connect fittings for damage, replace if necessary. Refer to .FITTING, QUICK CONNECT .
  7. Connect fuel supply hose (3) to fuel rail assembly. Check connection by pulling on connector to make sure it is locked into position.

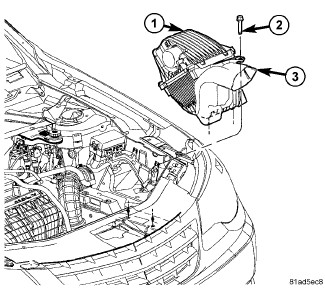

    Fig 3: Air Cleaner Housing Assembly
    GC0121527Courtesy of CHRYSLER GROUP, LLC
  8. Install air cleaner housing (1).

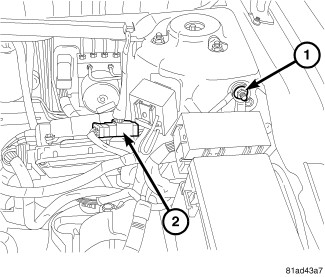

    Fig 4: Identifying Battery Cables
    GC0121528Courtesy of CHRYSLER GROUP, LLC
  9. Connect negative battery cable (1).
  10. Fill the cooling system. Refer to STANDARD PROCEDURE .

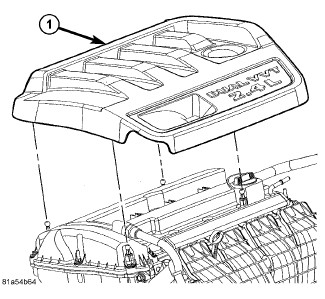

    Fig 5: Engine Cover
    GC0121529Courtesy of CHRYSLER GROUP, LLC
  11. Start engine and check for leaks.
  12. Install engine cover.
