Rear Solenoid 1/2

WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

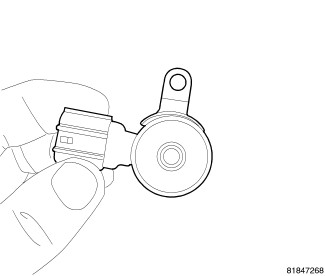

Fig 1: Solenoid Mounting Tab 1/2
GC0082441Courtesy of CHRYSLER GROUP, LLC
  1. Rear variable valve timing solenoid. Note mounting tab location is different between front and rear solenoids.
  2. Install solenoid into cylinder head.
  3. Install mounting bolt and tighten to 12 N.m (9 ft. lbs.).
  4. Connect electrical connector to Variable valve timing solenoid.

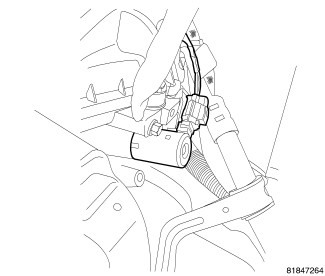

    Fig 2: Solenoid Location 1/2
    GC0082440Courtesy of CHRYSLER GROUP, LLC
  5. Connect negative battery cable.
  6. Install engine cover.
