Insulator, Engine Mount, Front: Removal: Removal

WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

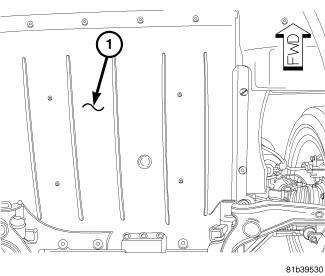

Fig 1: Removing/Installing Lower Silencer
GC0121481Courtesy of CHRYSLER GROUP, LLC
  1. Raise vehicle.
  2. Remove lower silencer (1).

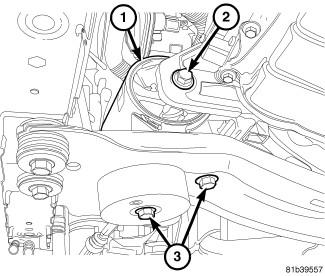

    Fig 2: Removing/Installing Front Mount
    GC0121482Courtesy of CHRYSLER GROUP, LLC
  3. Remove mount through bolt (2).
  4. Remove front mount retaining bolts (3).
  5. Remove front mount (1).
