Frame, Ladder: Installation: Installation
WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
When using RTV, the sealing surfaces must be clean and free from grease and oil.
NOTE:
When using RTV, parts should be assembled in 10 minutes and tighten to final torque within 45 minutes.

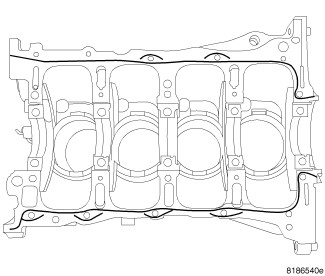

- Apply a 2 mm bead of Mopar® engine sealant RTV or equivalent as shown in illustration.

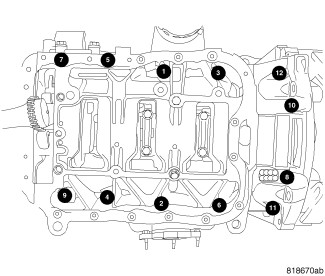

- Install bolts and tighten as shown in illustration following a two step method.
- First: All to 10 N.m (89 in. lbs.).
- Second: All to 26 N.m (19 ft. lbs.).
- Install balance shaft module. Refer to PUMP, ENGINE OIL, INSTALLATION .
- Install oil pan. Refer to PAN, OIL, INSTALLATION .
- Install the transmission to the engine.
- Install the engine. Refer to INSTALLATION .
