Standard Procedure - Connecting Rod - Fitting
WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

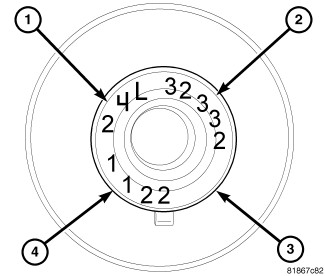

There are three different sizes of rod bearings available. Connecting rod bearing identification (4) can be found on the nose of the crankshaft (3). Use the table below for proper bearing selection.
CONNECTING ROD BEARING SELECTION
| CRANKSHAFT PIN DIAMETER GRADE | CONNECTING ROD BEARING CLASSIFICATION | CONNECTING ROD BEARING THICKNESS |
|---|---|---|
| 1 | 1 (Black) | -3 Micron (-.003 mm.) |
| 2 | 2 (No Color) | Standard |
| 3 | 3 (Green) | +3 Micron (+.003 mm.) |

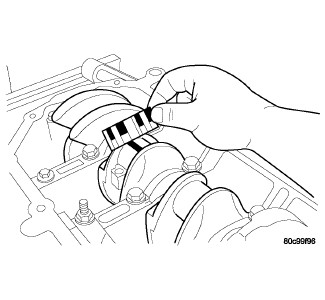

- For measuring connecting rod bearing clearance procedure and use of Plastigage, refer to MEASURING BEARING CLEARANCE USING PLASTIGAGE . For bearing clearance, refer to 2.4L ENGINE SPECIFICATIONS .NOTE:
The rod bolts should not be reused.
- Before installing the NEW rod bolts the threads and under the bolt head should be oiled with clean engine oil.
- Install each bolt finger tight then alternately torque each bolt to assemble the cap properly.
- Tighten the connecting rod bolts using the 2 step torque-turn method. Tighten according to the following values:CAUTION:
Do not use a torque wrench for the second step.
- Tighten the bolts to 20 N.m (15 ft. lbs.).
- Tighten the connecting rod bolts an additional 90°.

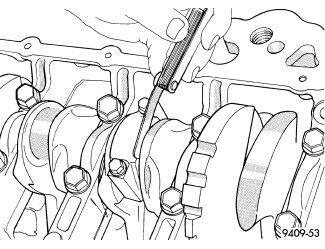

- Using a feeler gauge, check connecting rod side clearance. Refer to clearance specifications. Refer to 2.4L ENGINE SPECIFICATIONS .
