Cylinder Head On

WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove cylinder head cover. Refer to COVER(S), CYLINDER HEAD, REMOVAL .
  2. Remove camshafts. Refer to CAMSHAFT, ENGINE, REMOVAL .
  3. Mark valve tappet location for assembly.
  4. Remove valve tappets.
  5. Rotate crankshaft until piston is at TDC on compression.

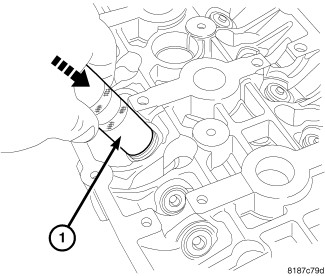

    Fig 1: Using Metric Valve Keeper Tool To Remove Valve Spring Keepers & Retainer
    GC0121430Courtesy of CHRYSLER GROUP, LLC
  6. With air hose attached to adapter tool installed in spark plug hole, apply 90-120 psi air pressure.
    CAUTION:

    Care must be taken not to damage the tappet bore or engine damage may result.

  7. Using metric valve keeper tool (1) such as Snap-on® GA317 (or equivalent), and remove valve spring keepers and retainer.
  8. Remove valve spring(s).
  9. Remove valve stem seal(s) by a using valve stem seal tool.
