Bucket, Tappet: Installation: Installation

WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

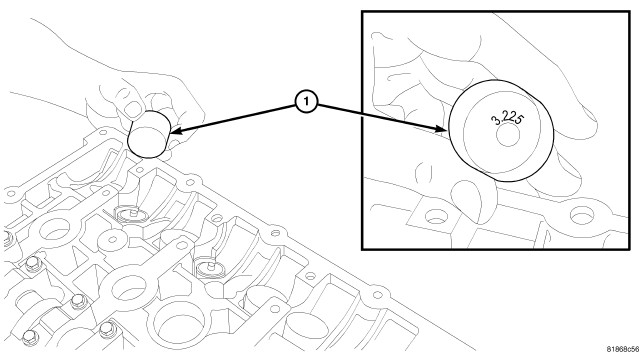

Fig 1: Tappet Identification
GC0121427Courtesy of CHRYSLER GROUP, LLC
NOTE:

If reinstalling original tappets they must go back in their original location or engine damage could result.

  1. Apply a light coat of clean engine oil to camshafts tappets (1) prior to assembly.
  2. Install camshaft tappets (1) into cylinder head.
  3. Repeat installation procedure for each camshaft tappet.
  4. Install camshafts. Refer to CAMSHAFT, ENGINE, INSTALLATION .
    NOTE:

    If installing new tappets, the valve lash procedure must be performed.

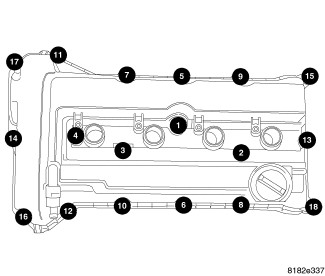

    Fig 2: Removing/Installing Cylinder Head Cover Bolts In Sequence
    GC0121428Courtesy of CHRYSLER GROUP, LLC
  5. Install cylinder head cover. Refer to COVER(S), CYLINDER HEAD, INSTALLATION .
