Link, Toe: Removal: Removal
WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.
- Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .

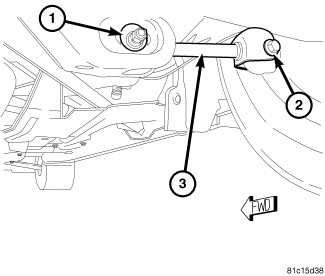

- Remove the mounting bolt (2) and nut securing the toe link (3) to the knuckle.
- Mark the position of the cam bolt cam on the crossmember using a paint marker or crayon. Do not use any type marker that will scratch or damage the surface of the crossmember.

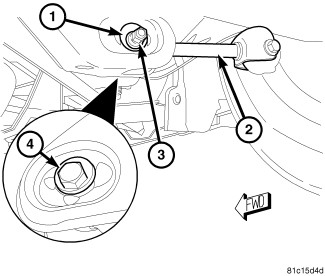

- While holding the cam bolt (4) head stationary, loosen and remove the toe link mounting cam bolt nut (3) and washer (1). Remove the cam bolt.
- Remove the toe link (2).
