Unit, Front Lamp: Installation: Lamp
WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
If the front lamp is being replaced with a new unit, the bulbs and sockets must be transferred from the unit being replaced.
- Position the front lamp unit to the front of the vehicle.
- Reconnect the headlamp and dash wire harness connectors to the back of the lamp housing.
- Position the front lamp unit into the Front End Module (FEM).

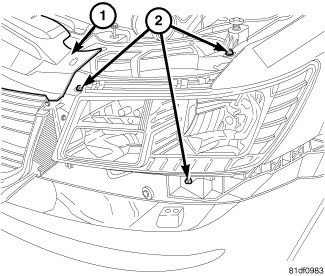

- Flex the fascia and grille (1) outward far enough to install and tighten the three screws (2) that secure the front lamp unit to the FEM. Tighten the screws securely.
- Reinstall the four plastic push-pin fasteners that secure the upper grille to the FEM.
- Reinstall the front fascia on the same side of the vehicle as the front lamp unit being installed. Refer to FASCIA, FRONT, INSTALLATION .
- Reconnect the battery negative cable.
- Confirm proper headlamp alignment. Refer to STANDARD PROCEDURE .
