Switch, Parking Brake: Removal: Removal: Hand-Operated

WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

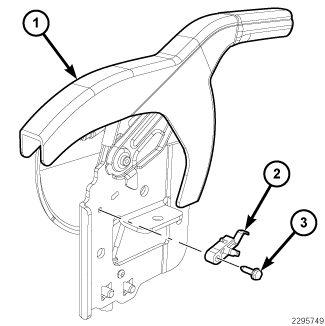

Fig 1: Parking Brake Lever
GC0128633Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the battery negative cable.
  2. Remove the console from the floor panel. Refer to CONSOLE, CENTER, REMOVAL .
  3. Pull the parking brake lever (1) upward to apply the parking brake.
  4. Disconnect the wire harness connector from the terminal of the park brake switch (2) located on the right side of the park brake lever mechanism.
  5. Remove the screw (3) that secures the switch to the park brake lever bracket.
  6. Remove the switch from the park brake lever bracket.
