Heater, Closed Crankcase Ventilation (CCV): Removal: Removal

WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Engine Cover
GC0148021Courtesy of CHRYSLER GROUP, LLC
  1. Remove the negative battery cable.
  2. Remove the engine cover (1).

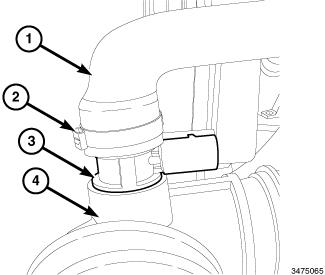

    Fig 2: Clamp, Crankcase Breather Hose, Remove Crankcase Vent Heater & Turbo Air Inlet Hose
    GC0148039Courtesy of CHRYSLER GROUP, LLC
  3. Remove clamp (2) and the crankcase breather hose (1).
  4. Disconnect the crankcase vent heater wire harness connector.
  5. Carefully pull up and remove crankcase vent heater (3) from turbo air inlet hose (4).
